High Efficiency Traditional Halogen Style DimmableLED PAR Lamps

Unique Aluminum Reflector
Max. 100w Replacement
Saves Energy Up to 80%
High Efficiency> 80 lm/w
Long Lifespan> 25000 hours
IP65 Wet Location in Process

Lamps: PAR20 PAR30 PAR38
Input: AC 120V 60Hz
Power: 7W 13W 15W 18W
Base: E26
Smooth Dimming: 10~100%
CCT: 2700-5000K
Brightness: 500-1550 Lumens
At CRI ≥ 80
Brightness: 410-1280 Lumens
At CRI ≥ 90

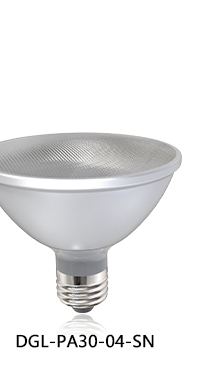

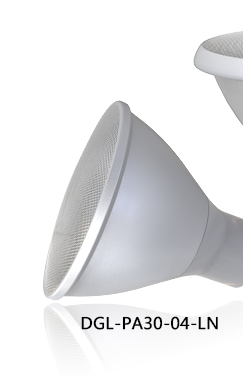

MODEL	DGL-PA20-04		DGL-PA30-04-SN		DGL-PA30-04-LN		DGL-PA38-04
Watt (W)	7W		13W		13W		15W		18W
CRI	>80		>80		>80		>80		>80;
CCT(K)	2700/ 3000K		2700/ 3000K		2700/ 3000K		2700/ 3000K		2700/ 3000K
Lumen (Lm)	500- 530	550- 570	1000- 1050	1100- 1150	1000- 1050	1100- 1150	1160- 1200	1250- 1280	1320- 1400	1480- 1550
CRI	>90		>90		>90		>90		>90
CCT(K)	2700/ 3000K	4000/ 5000K	2700/ 3000K	4000/ 5000K	2700/ 3000K	4000/ 5000K	2700/ 3000K	4000/ 5000K	2700/ 3000K	4000/ 5000K
Lumen (Lm)	410- 430	450- 460	800- 840	880- 920	800- 840	880- 920;	950- 980	1000- 1050	1080- 1120	1200- 1280
Equiv. (Halogen)	50W		75W		75W		90W		90W
B.A	25°/40°/58°		27°/40°/58°		27°/40°/58°		15°/27°/40°/58°		15°/27°/40°/58°
Size（mm）	Ø63*80		Ø95*90		Ø95*118		Ø122*132		Ø122*132
PF	>0.7		>0.9		>0.9		>0.9		>0.9
CBCP（cd）	720 (40°)		1100 (58°)		1200 (40°)		2610 (27°)		3250 (27°)

	Company	Liteharbor Lighting Technology Co., Ltd

	Tel	+86-757-8180-8675 +86-757-8180-8688

	Fax	+86-757-8180-8685

	E-mail	info@liteharbor.com

	Website	www.liteharborfactory.com

	Address	New lndustry Area hecun Danzao Town Nanhai Foshan City China
We Are The One
Experienced Manufacturer with 10-year Experiences in Lighting. Leading Manufacturer of Recessed downlight in China. One-Stop Manufacturer Supplies All Kinds of Indoor and Outdoor Lights. Professional Manufacturer Provides Full Lighting Solutions. Reliable Manufacturer with Full Quality Control System, to Satisfy Our Customers is Our Eternal Tenet. ODM & OEM Manufacturer with Full Researching and Development Ability. Liteharbor Warmly Welcome Your Joining!
