Recessed Lighting - Types of Trims

Recessed Lighting - Types of Trims



In the product lines of Liteharbor. There are many different options of Recessed Lighting trims from the traditional looking baffle trim to the damp resistant shower trim. When designing your space, make sure to consider the lighting function, layout, and desired light output for your home.

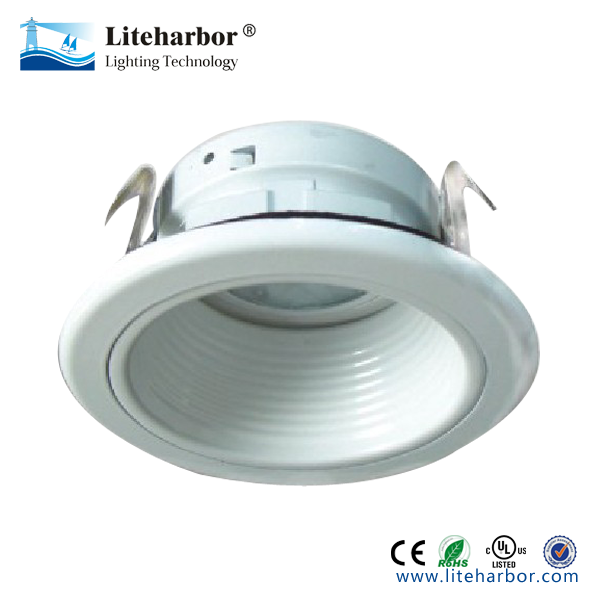

Baffles
Baffle trims trap and shape light to minimize glare and reduce ceiling brightness. Notice the ridges on the inside of the baffle trim. These ridges actually act as a light diffuser to soften light output and help soften any glare from your recessed fixture. Baffle trims are great for lower ceilings to create a softer, more comforting light.

 baffle trim

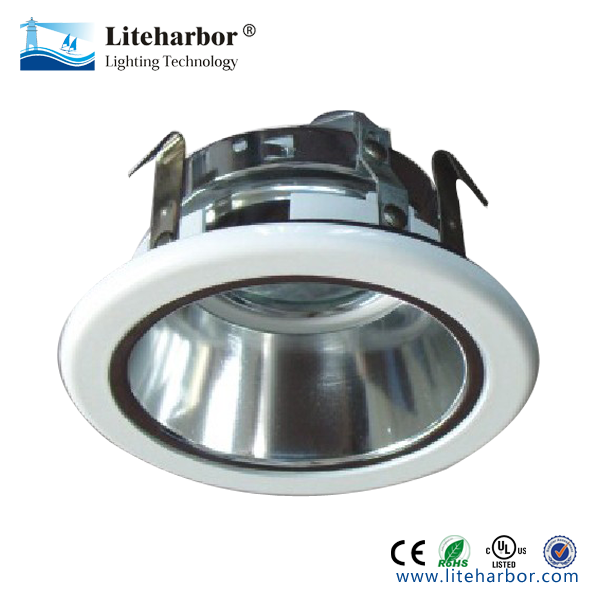

Reflector Trims

As opposed to the baffle trim, the reflector trim is actually meant to amplify light. The reflective trim lining reflects the light giving you max lumen output for your application. These are great for high ceilings or rooms needing max lighting output with minimal fixtures. Reflector trims create wide light patterns and maximize the efficiency of the light source. Haze reflectors reduce glare yet maximize light distribution, gold finished reflectors add warmth and black reflectors minimize glare. Full reflectors are used with a wide variety of light sources (A, GS, CFL, HID, Incandescent, Halogen, Low Voltage and LED).

Reflector Trim

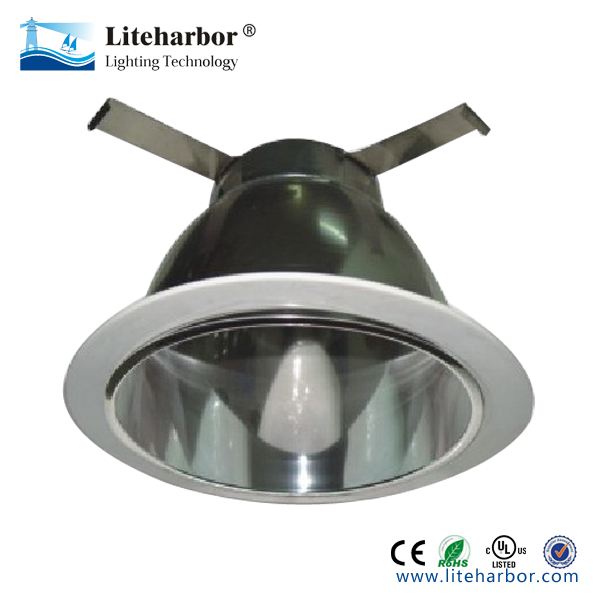

Reflector Cones
Reflector cones are generally shorter and are designed for use with reflector style (R, BR MR, GU-10, and PAR lamps). They direct the full output of these lamps to the illumination task.

reflector cones

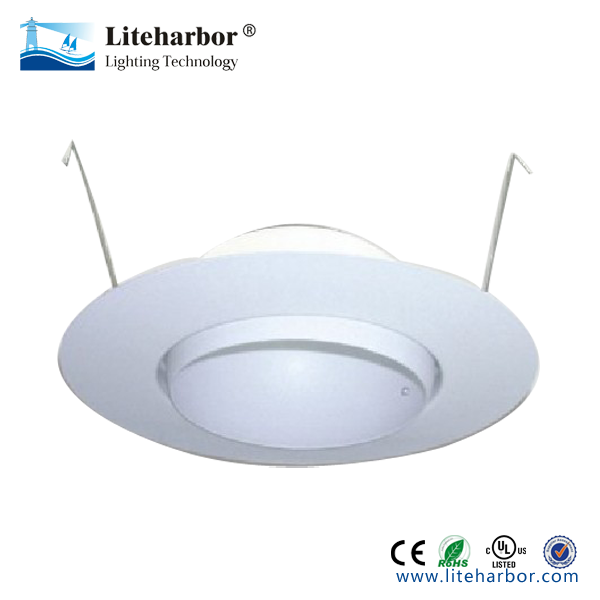

Eyeballs/GIMBALS/Adjustables
Also know as eyeball trims, adjustable trims allow the user to adjust the light direction any way they would like. Great for easily directing light to any desired area or highlighting a specific element of your home.

eyeball trim

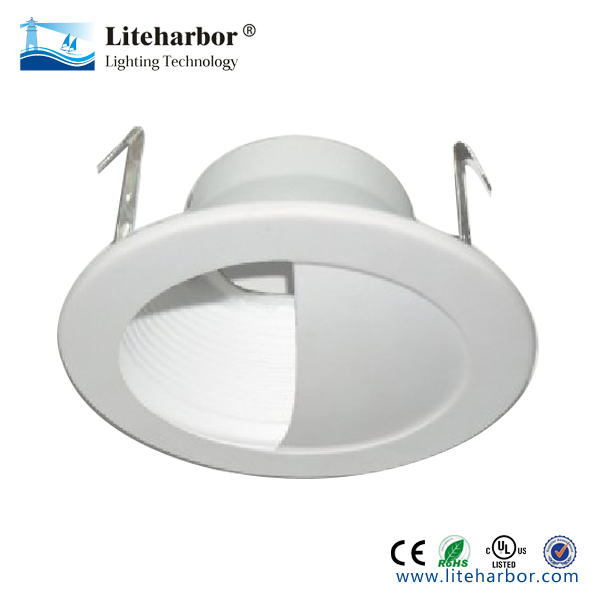

Wall Washers
Wall washer trims use an adjustable half-cone design that is perfect for accenting a certain wall, architectural design or artwork below. Wall Wash trims provide vertical surface illumination. Special reflectors allow both wall washing and downlighting. Depending on the light source and fixture positioning, these trims will provide uniform, scalloped or non-uniform lighting patterns. Wall wash trims are great for smaller rooms because when used properly they can add emphasis to vertical features which makes the eye perceive the room as larger.

Wall Washer


Open Trims
Open trims create an attractive finished look without compromising the natural efficiency of reflector style lamps (R, BR and PAR).

open trims

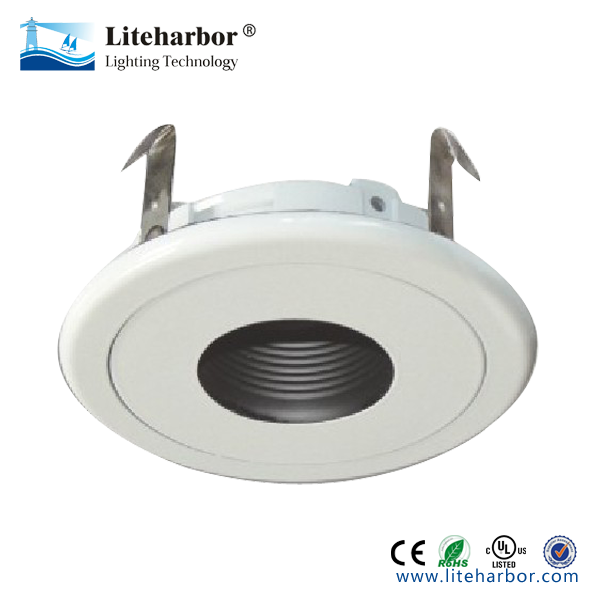

Pinhole Trims

Pinhole trims are cut in a way that is meant to make the light form a more precise beam. These are excellent for task focused lighting as well as drawing attention to a display case or other feature in your home.

 pinhole trims

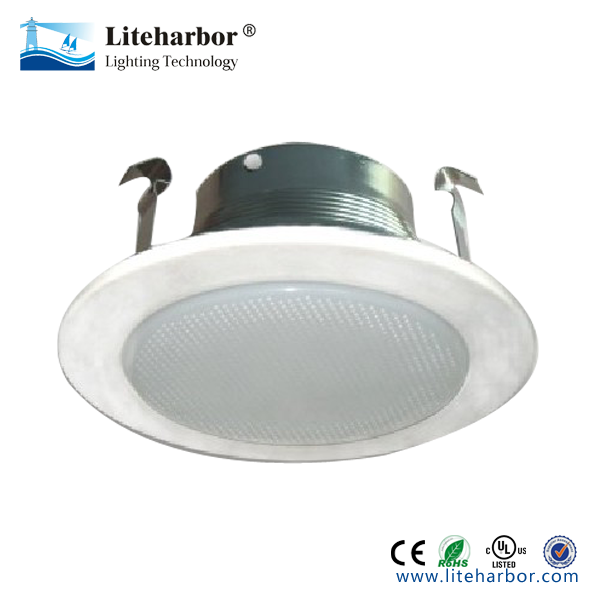

Shower Trims

Shower trims have a specially made rubber gasket that prevents water and moisture from leaking into the ceiling space. These trims can also be used outside, in garages, or any other area where moisture damage may be an issue.

shower trims



Lens and Diffusers
Lenses and diffusers are designed to soften and direct the light. Designated trims can be used as shower lights and have UL/cUL wet location listing.
