How to install Multiple Trimless Recessed downlight

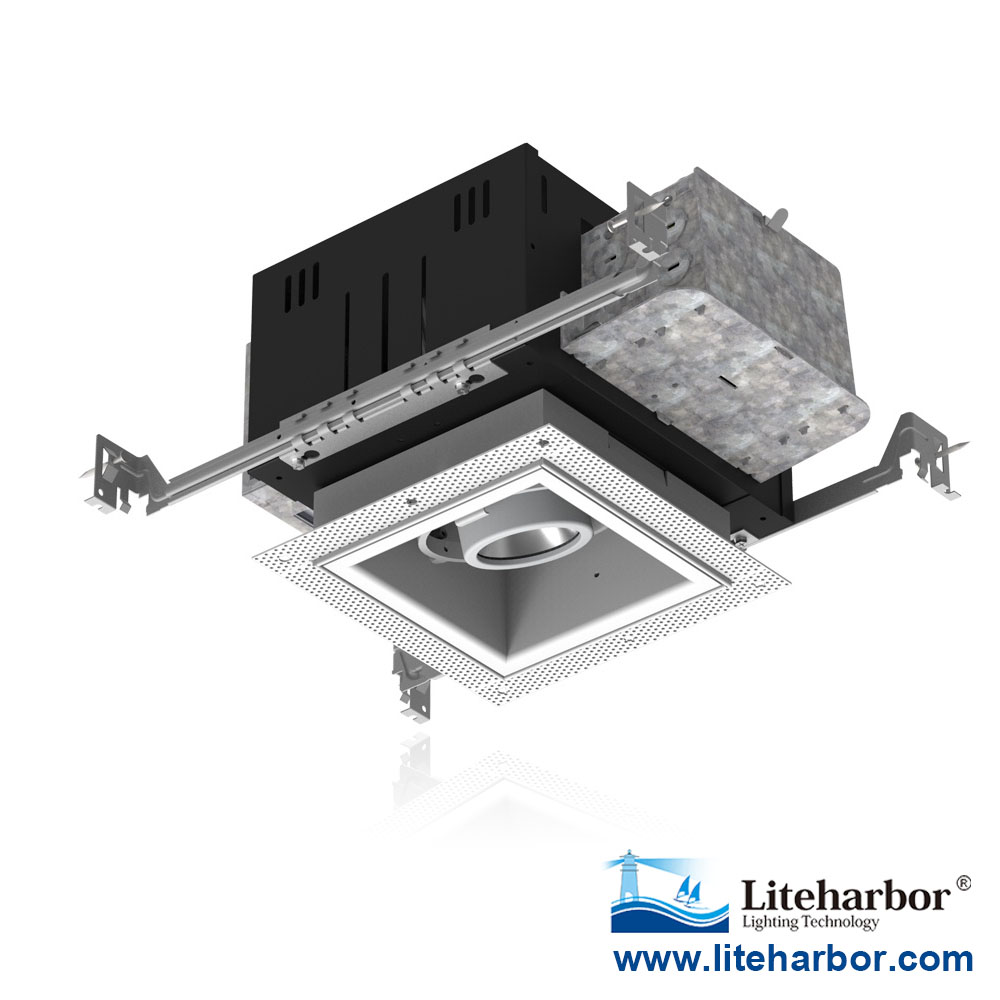

Trimless Recessed Kit:
• Recessed fixture
• Frame
• 2 Mounting brackets

Step 1:

Trace the cut hole using the frame as a template.
Decide where you would like your recessed light fixture. Use a pencil to carefully draw around the outside of narrowest part of the frame.

Step 2: Cut the hole with a drywall saw.

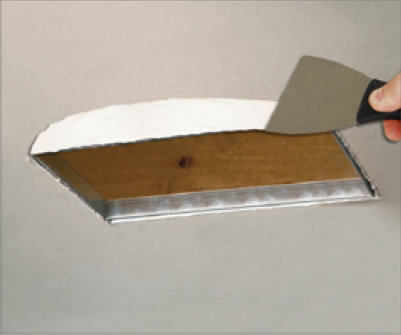

Step 3:Plaster the inside top perimeter of the cut hole. This will "paste" the frame into the hole.

Step 4:

Install the frame.
Push the frame through the hole, then turn so that you can pull it down, suspending from the wider part.



Step 5:

Place the frame securely into the cut hole while pulling down.
Allow the plaster to dry.

Step 6:

Plaster the outside of the cut hole frame.
Smooth some plaster over the edge between the ceiling and the frame.


Step 7:Adjust the mounting bracket.

Step8:

Wire the fixture.
New Design!
Safety cables suspend the fixture.
Work "hands-free" during installation and servicing.




Step 9: Insert the fixture into the opening.

Step 10: Install the bulbs.




Your installation is complete!

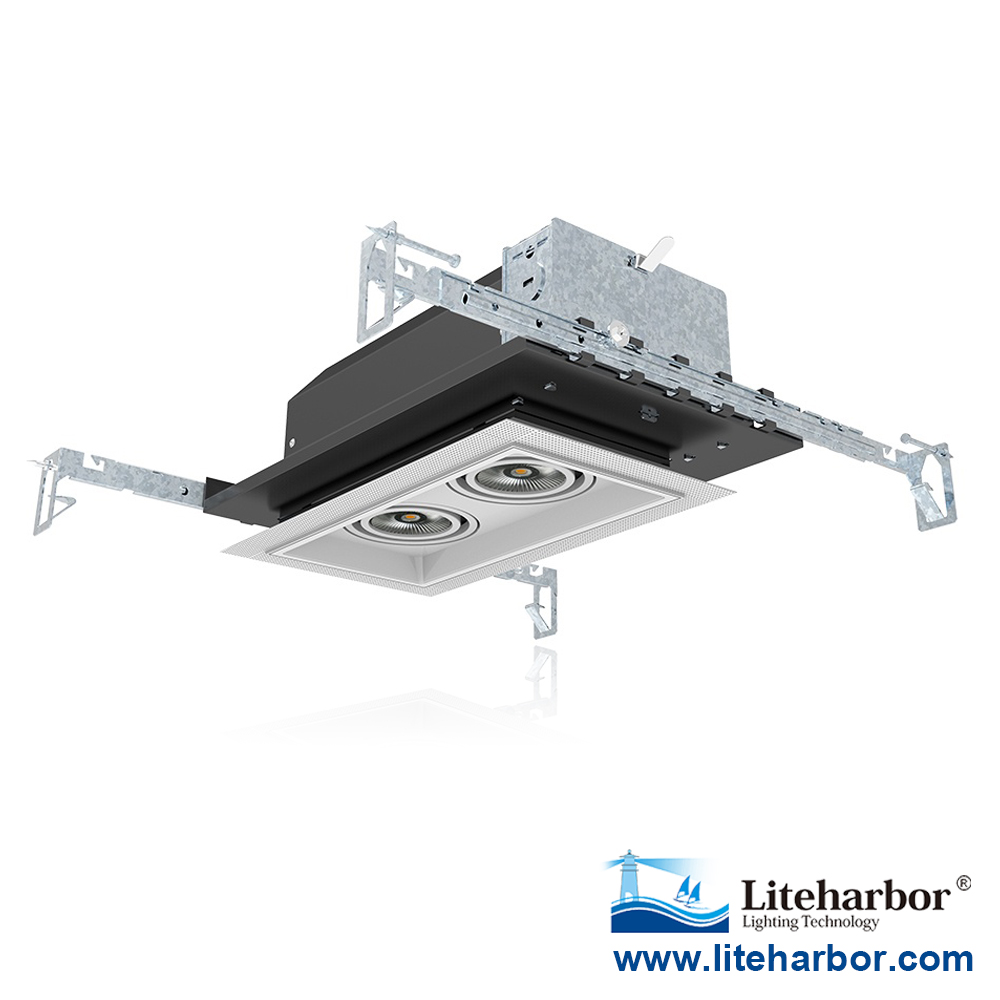

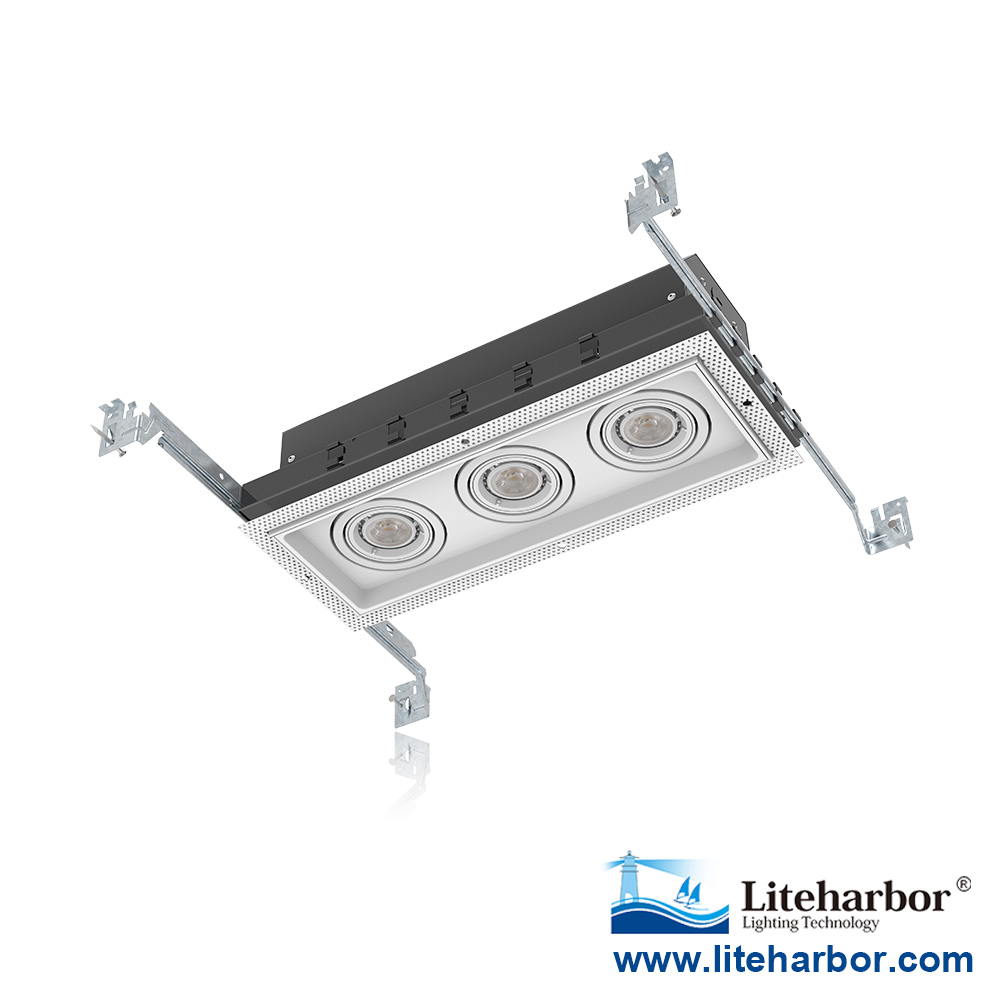

Liteharbor Lighting multiple trimless recessed downlight
