First important thing is turn off electricity!

Steps of Wall Mounting

1. Remove mounting plate from fixture.

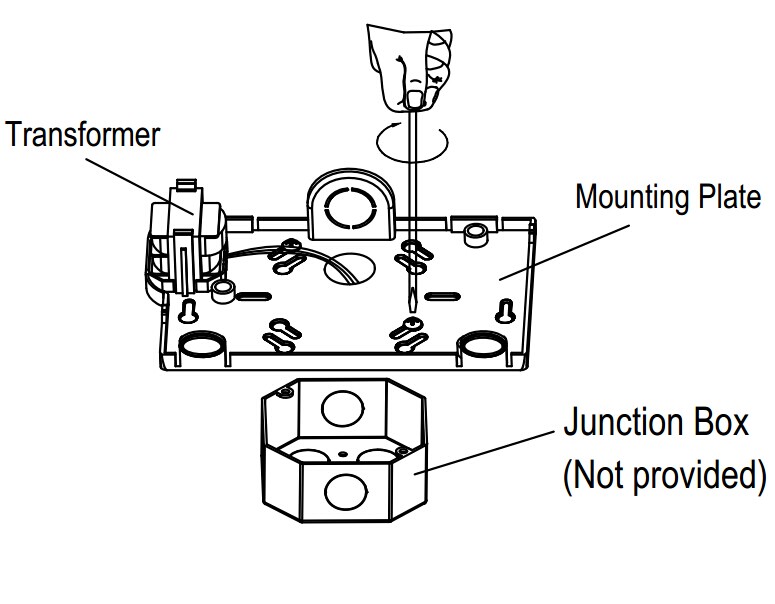

2. Knockout in back of mounting plate and push wires through the hole.

3. Securely attach mounting plate to J-box.

4. ELECTRICAL CONNECTIONS:

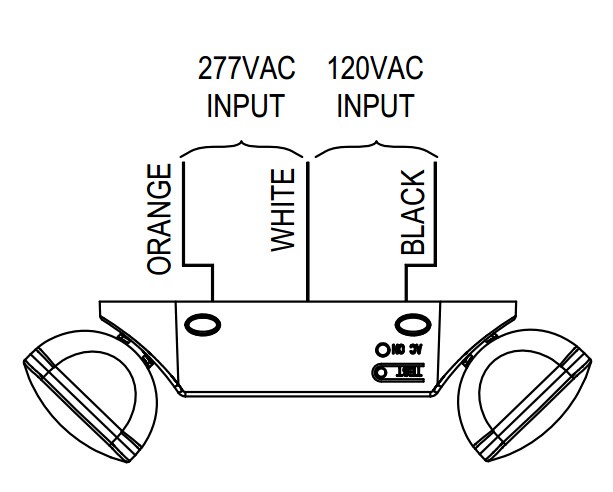

Connect white wire lead from fixture to white (neutral) wire supply feed from circuit. Connect black (120V) or orange (277V) (depending on supply voltage) wire lead from fixture to black (hot) wire from supply circuit. Use U.L. Listed wire connectors suitable for the size, type, and number of conductors. No loose strands or loose wires should be present. Secure wire connectors with U.L listed electrical tape.

5. Connect transformer to PCB Ass'y.

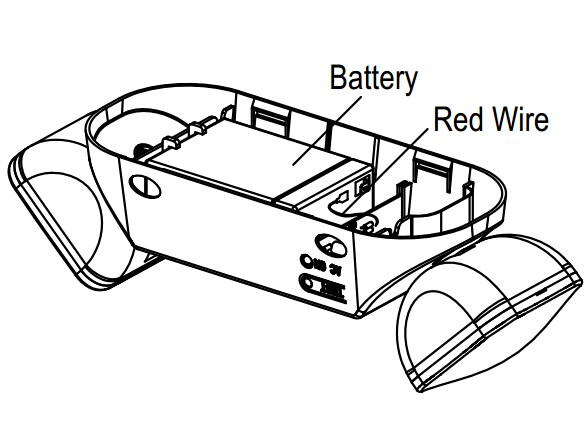

6. Connect red lead to battery positive terminal.

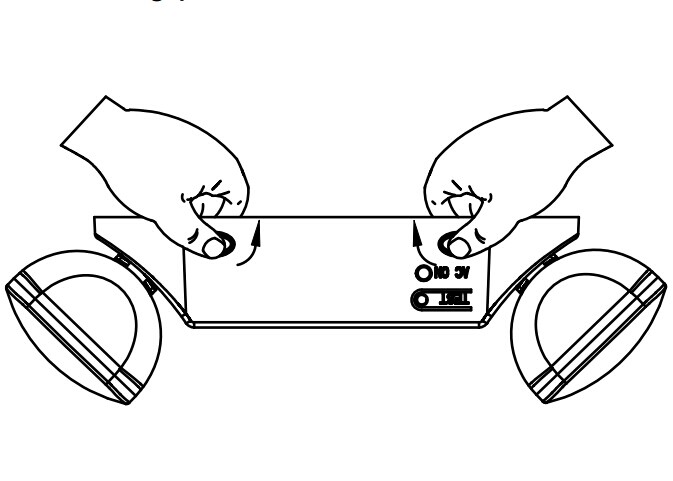

7. Snap fixture onto mounting plate and ensure no wires are pinched. Make sure unit is fully attached.

8. Restore power and press test button. Battery powered bulb will come on. AC light will turn off

Steps of Ceiling Mounting

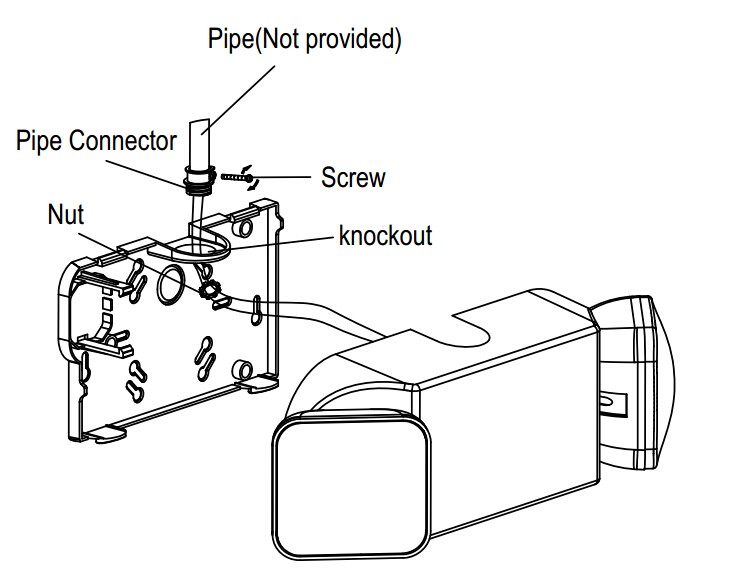

1. Open top cover and knockout on the top of fixture.

2. Secure the mounting plate to tube with nut.

3. Reference 4 - 8 step in wall mounting above for ceiling mounting.

Note: All servicing should be performed by qualified personnel only.
          Allow battery to charge for 24 hours before first use.
