How to Use Wireless Dimmer to Control Your Recessed Lights from Bed

As we know, having a dimmer switch installed will allow you to adjust the brightness of the lights so that you can adjust the room atmosphere.



Nowadays,Wireless technology provides a lot of convenience.So here comes the question: How to Use Wireless Dimmer to Control Your Recessed Lights from Bed?



Here’s a cool project that adds the convenience of controlling your Recessed Lights from your bedside, just like a fancy hotel. The result is a dimmer switch mounted on both sides of the bed that control the Recessed Lights in addition to a dimmer at the door. For you fellow electricians, a 4-way switch. The best part is it takes advantage of wireless dimmer technology which does not require any new wiring to be run.



Here’s what you’ll need:
• Wireless dimmer kit
• Additional wireless dimmer
• Additional wallplate
• Wallplate brackets
• Screwdriver
• Wire strippers
• Tape measure
• Small level




Here’s a summary of the steps to install a dimmer:

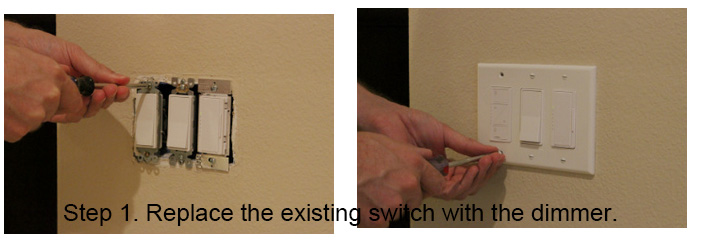

Step 1.
Replace the existing switch with the dimmer                                                                                                                                                                                                      Turn off the power. Remove the existing switch or dimmer and install the dimmer switch in its place. There are wiring instructions included with the dimmer if needed.

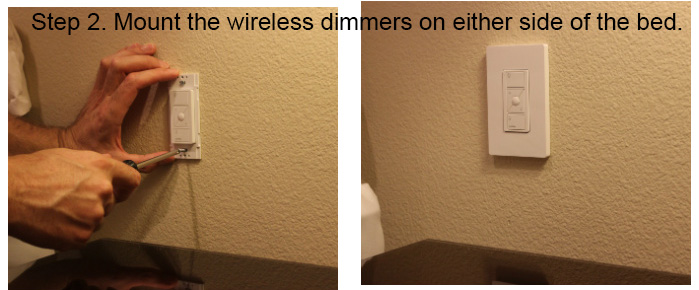

Step 2. Mount the wireless dimmers on either side of the bed.
Measure and mark the wall where you’d like the controls to go on both sides of the bed. Example; 8-inches out from the headboard and 6-inches up from the nightstand on center.
Insert the dimmers into the wall mount brackets and attach them to the wall using the anchors and screws included with the brackets (use your level). Then install the cover plates.

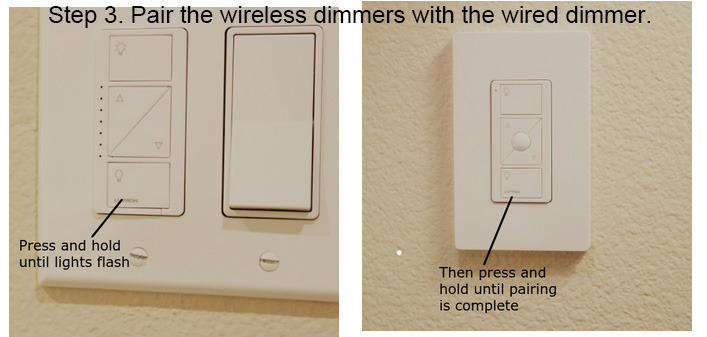

Step 3. Pair the wireless dimmers with the wired dimmer.
Turn on the power. Press and hold the off button of the wired dimmer switch until the led lights begin flashing. Then go to one of the wireless dimmers and press and hold the off button until the Recessed Lights flash indicating that the pairing is complete. Repeat the same process from the beginning for the wireless dimmer on the other side of the bed.



That’s it! Now you can control the Recessed Lights from the original location at the door and from your bedside.

refer to the knowledge of  LED Dimmer Type:http://www.liteharborfactory.com/resources/light-knowledge/41_LED-Dimmer-Type.html
