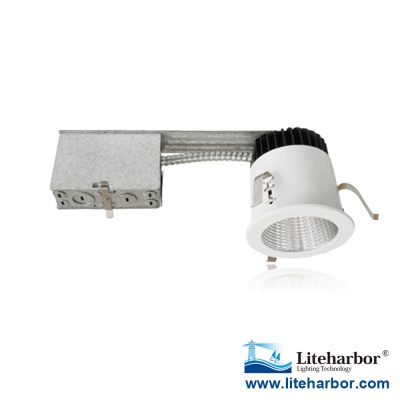

Line Voltage 3.5 Inch Remodel with COB Reflector Retrofit NON-IC Housing

Line Voltage 3.5 Inch Remodel with COB Reflector Retrofit NON-IC Housing

ITEM No.: AL35R
Housing : Die-formed aluminum
Input : 120V/ 277V
Light source : COB LED
Color Temperature : 2700K-6500K
Chip : Cree, Citizen, Epistar all are available

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

Line Voltage 3.5 Inch Remodel with COB Reflector Retrofit NON-IC Housing

Features

Uniquely Designed for New and Existing Construction

Idea for Places Where Edison Base Sockets Have Been Banned

Environment Friendly no Cd or Hg included

Good Heat Dissipation More Safe to Use than LED Bulbs

LED Light Engine is attached to the die-cast heat sink and is easily replaceable and upgradable

High CRI>80%

50000 hours' life time

Spot Distribution is Idea for Task Lighting Applications



Housing

Die-formed aluminum for maximum heat dissipation and rust protection

Designed for New Construction installation and suitable for using in non-insulation covered ceilings

Housing adjusts to 1/2" to 1 3/8" ceiling thickness. Trims are held in place with high tension clips

Housing is Non-IC rated must be kept at least 3" away from insulation



Junction Box

ETL listed for through branch wiring

1/2" and 3/4" romex wiring knockouts and four romex knockouts with integral strain clamps, all knockouts have true pry-out slots

J-Box is designed for straight through conduit runs

Fixture fully assembled including pre-wired ballast for easy installation

Removable access plates for easy installation



Heat Sink

All our heat sinks are made of 6063 aluminum

Scientific design ensure good heat dissipation

Finish oxidize black color



Reflector Trim

Especially designed for COB light no glare

No visible hardware

All reflector trims using 3002 aluminum ensure good color consistency even though after long time high temperature working

Transmittance>90%



Durability

Die-cast system pulls heat from the LED chip allowing continued cool operation for years

LED output will be maintained at 70% if initial lumens at 50000 hours of operation

Our superior design allows for installation in construction where Air-ShutTM is required



Thermal Protection

Standard thermal protection device guards against improper installation and misuse of insulation material



LED Light Engine & Electronic System

120V/277V 50/60Hz input

Less than 20% THD will be produced

Power Factor>90%

Thermally protected for additional safety

Driver is installed on the junction box cover easy accessible for service from the ceiling

Class 2 power supply

Over voltage, over current and short circuit protection: Auto recovery

Dims down to 10% with electronic low voltage (ELV) reverse phase control dimmers

CRI>80%

Color Temperature 2700K-6500K

Cree, Citizen, Epistar all are available

16W max
