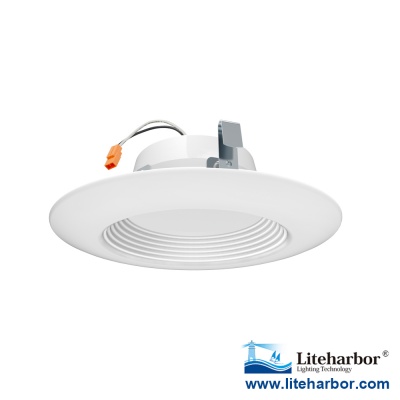

Liteharbor 4 Inch 10W High Voltage LED Retrofit
Liteharbor 4 Inch 10W High Voltage LED Retrofit5 Liteharbor 4 Inch 10W High Voltage LED Retrofit4 Liteharbor 4 Inch 10W High Voltage LED Retrofit3 Liteharbor 4 Inch 10W High Voltage LED Retrofit2

Liteharbor 4 Inch 10W High Voltage LED Retrofit

ITEM No.: BL4-001-E
Liteharbor Size : 4 Inch
Liteharbor Wattage : 10W
Liteharbor Volatge : AC120V±10%
Liteharbor CCT : 2700-4100K

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

Liteharbor 4 Inch 10W High Voltage LED Retrofit



Features

LED reforfit for recessed downlight.
Scheme for High Voltage AC, effectively reduce the volume and weight of lamps.
Power supply for 50000 hours, low EMI and low consumption
Compatible with several triac dimmers, dimmable to 5%.
High transmittance, high diffusion, 92% light transmittance.
No shadow, no glare, have the role of protecting eyesight.
Concealed light source.



Specifications

Wattage: 10W
Input Voltage: AC120V±10%
Lumen: 750LM
Electric Frequency: 50/60Hz
PF: >0.9
Dimmable: None/TRIAC
Finish: Black/White/Satin Nickel
CCT: 2700-4100K
CRI: 80+/90+



Lamp Body

Using iron plate material, die spinning technique, can electroplating
or spray coating, high glisten rate, use long without discoloration,
and high illumination uniformity.



Chip

Cree/Citizen/Epistar/Seoul/Osram, durability and stability, uniform
luminance.



Power Supply

Scheme for high voltage AC, effectively reduce the volume and weight

of lamps, long life-span, low EMI and low consumption.



Diffuser Plate

Using imported high transmittance diffusion plate, uniform light

soft light and no glare.



Quick Connector

Safe and easy to install, suitable for LED housing or E26 socket

housing.

Listing / Warranty

ETL listed to US and Canadian standards for damp location

W/Feed through.
3  Year Limited Warranty.



Packing

Inner Box : 180*165*60 mm   1PCS/BOX
CTN: 57*39.5*21.5cm   12 PCS/CTN



Application

Automotive and Parking, Education, Government, Healthcare, Hospitality, Offices and Banks, Religious, Retail.
