Liteharbor 6 Inch 12W /14W COB Retrofit Downlight
Liteharbor 6 Inch 12W /14W COB Retrofit Downlight2 Liteharbor 6 Inch 12W /14W COB Retrofit Downlight1 Liteharbor 6 Inch 12W /14W COB Retrofit Downlight0

Liteharbor 6 Inch 12W /14W COB Retrofit Downlight

ITEM No.: BL6-001-COB
Liteharbor Size : 6 Inch
Liteharbor Wattage : 12W/14W
Liteharbor Volatge : 110/277/347V
Liteharbor CCT : 2700-4100K

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

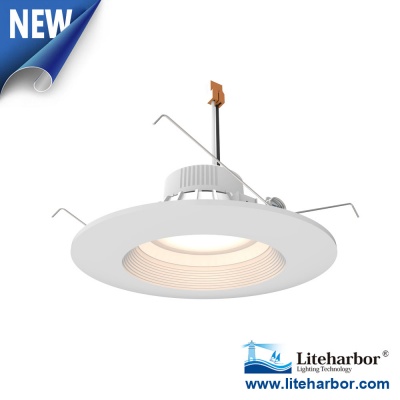

Liteharbor 6 Inch 12W/14W COB Retrofit Downlight



Description
COB retrofit trim designed to use with Liteharbor 6 inch recessed residential downlight. Using die-casting aluminum casting, good  heat disspation, high transmttance lens and diffusion film, can change the beam angle.





FEATURES
₋ The 12W 5,6-inch universal housing, is a high-performance, easy to install residential-grade downlight, providing a good light output, light uniform and soft, efficient energy-saving.
₋ Using high-quality COB light source and high transmittance lens, high luminous efficiency.
₋ Can choose to use different types of diffusion film to change the beam angle; can change to 10 °, 12 °, 20 °, 30 °, 45 °, 55 °, 60 °.
₋ Use die-casting aluminum casting, good heat dissipation, light modeling simple and beautiful.
₋ Dimmable, dimmer compatibility is good, can match the multi-brand dimmer, dimming effect is good (dimming stable even, no  strobe).
₋ Easy installation time-saving, tool-free, quick terminal installation, with E26 adapter, can be used as E26 porcelain seat LED transformation.



Light Engine

Light source: COB
Material: Die cast aluminum
Input Voltage: AC 120V  277V  347V ±10%
Electric frequency: 50/60Hz
Wattage: 12W/14W
CCT: 2700-4100K
PF: >0.9
CRI: 80+/90+
Dimmable: None/TRIAC

Finish: White/Black/Satin nickel



Listing & Warranty

ETL listed to US and Canadian standards for wet locations
5-Year Limited Warranty.



Packing

Inner Box : 19*9*19.2cm   1PCS/BOX
CTN: 57*39.5*21.5cm   12 PCS/CTN
