6 Inch Surface And Recessed Mounted LED Disk Light
6 Inch Surface And Recessed Mounted LED Disk Light1 6 Inch Surface And Recessed Mounted LED Disk Light0

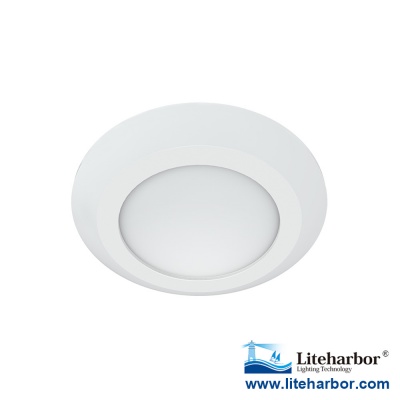

6 Inch Surface And Recessed Mounted LED Disk Light

ITEM No.: BL6-003-2
Input Volt. : 120V
Wattage : 15W
Size : 6 Inch
PF : >0.95
CCT : 3000/4000/5000/6500K

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

6 Inch Surface And Recessed Mounted LED Disk Light



Features

- This Disk Light is a universal surface mount trim/luminaire. It replaces bulbs can be flush mounts, recessed trims, and installs on most 4" round or octagon junction boxes (minimum 2-1/8" depth junction box required).
- Provides surface mount light for 4 inch junction boxes or fire rated boxes. It is suitable for use in dry, damp location such as shower room/fire box around.
- 120V operation with TRIAC/ELV dimming down to 10%.
- Flexible mounting with junction box bracket (included), easy installation and instant on make you feel convenient and different from what you used to have for light up your room.
- Can be installed in both a 5 in. and 6 in. recessed housings, for new construction, remodel and retrofit applications.



Specifications
Lamp Body: The product is made of iron spinning, and can be electroplated or sprayed with high-reflectivity powder. It is
beautiful and elegant. It can be used for a long time without discoloration, and its light uniformity is extremely high.
Light Source: Using famous brand LED chips, superior performance, life rated for 30,000 hours at 70% lumen maintenance.
Driver: AC line voltage scheme is adopted to effectively reduce the size and weight of the lamps , long power supply life, low electromagnetic interference, low energy consumption and high performance.
Diffuser: The use of high transmittance diffuser ensures that the light is uniform, delicate, soft and non-irritating, and ensures high light transmission effect while effectively preventing glare.



Applications

Apply to automotive and parking, education, government, healthcare, hospitality, offices and banks, religious, retail.



Parameter List

Watt 15W
Voltage 120V AC
Frequency 50/60 Hz
PF >0.95
CRI

80+/90+

Dimming Non-dimming/TRIAC Dimming
CCT 3000/4000/5000/6500K



Listing / Warranty
ETL listed to US and Canadian standards for damp location W/Feed through.
3 Year Limited Warranty.


Packing
Inner Box: 205*205*40 mm  1 PC/Box
Carton: 51*42.5*22 cm   24 PCS/Carton

  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File
