Recessed Multiple Downlight 2 lights
Recessed Multiple Downlight 2 lights0

Recessed Multiple Downlight 2 lights

ITEM No.: G4012-B
Series : LED Multiple Downlight
Light Source : COB LED
Input volt : 120V-277V
CCT : 2800-6000k
Trim : Flanged Trim/ Trimless

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

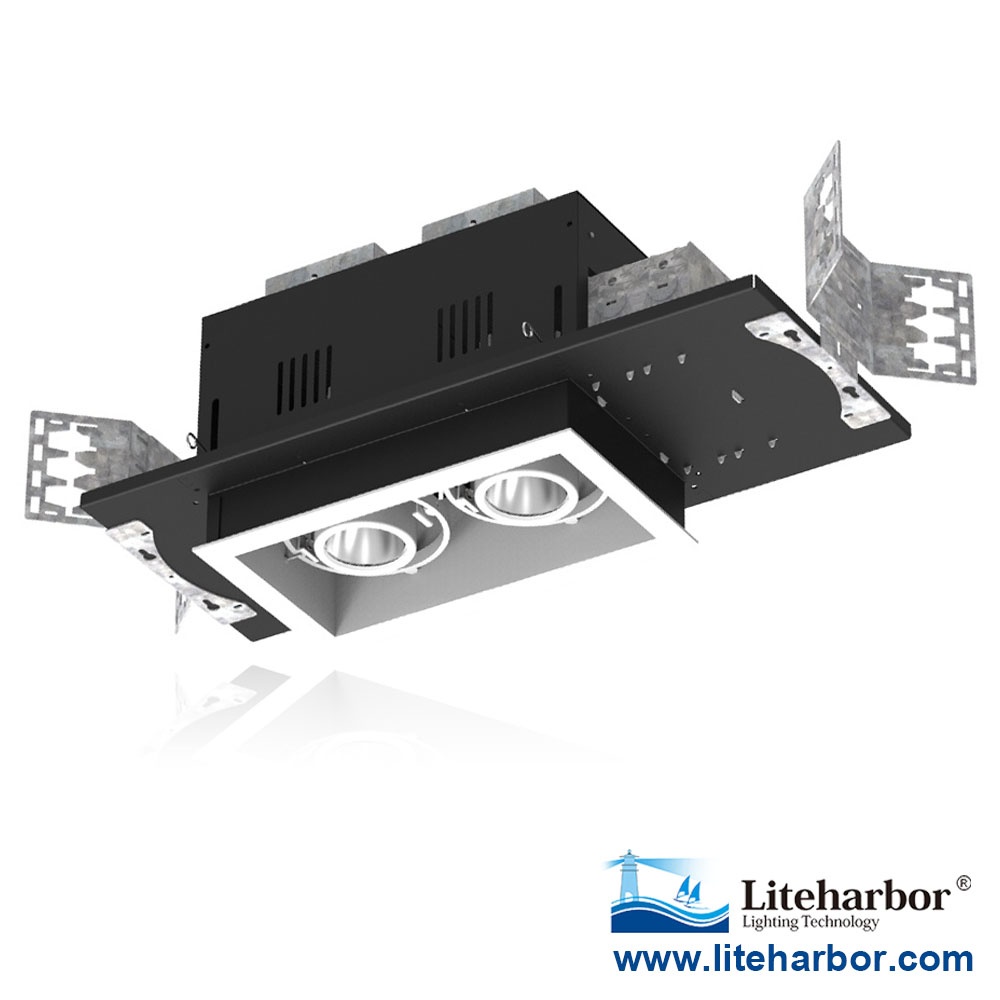

Recessed multiple downlight 2 lights



Description

Easy Installation and maintenance

All parts and components accessible from below the ceiling

Lamp holders are adjustable 360° horizontal and 30° vertical for spot lighting in multiple directions

Actual adjustment may vary depending on the lamp beam spread



Housing

The inner trim is constructed of 22GA steel

Finish can be black, white or silver

Special finish please confirm with factory

Internal wire bundles and locked and covered with a glass sleeve

Junction box can be accessible from below the ceiling with a plate



Mounting Frame

Can be accommodate a 1/2" to 1 1/4" ceiling thickness

Channel bracket allow up to 5" vertical adjustable

Universal mounting brackets included

Compatible with C-channel, flat bar, and EMT

C-channel are recommended for T-bar ceilings

Bar hangers must be ordered separately



Flanged Trim

Extruded trim frame includes torsion springs for convenient installations or removal from the housing



Trimless

Optional mud frame available for trimless mounting

The perforated mesh frame provided adheres to joint compound for seamless and trimless mounting



LED Light Engine

2800-6000k

CRI>80%

LED mounted to die-cast/extruded aluminum heat sink

50000 hours average rated life at 70% lumen



Electrical System

120-277V input

Class 2 power supply

Over voltage, over current and short circuit protection

Auto recovery

10% dimmable is available 120V only

10/15/17.8/20W each lamp

Light Efficiency:70-80lm/W(Consult with our factory)

Item

Lamp Q’ty (PCS)

Wattage (W)

Lumen (LM)

Color Temperature (K)

DGL-GA2011C

1

20

1400





2800-6000k



DGL-GA2012C

2

40

2800

DGL-GA2013C

3

60

4200

DGL-GA2014C

4

80

5600

DGL-GA2010C

4

80

5600



  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File
