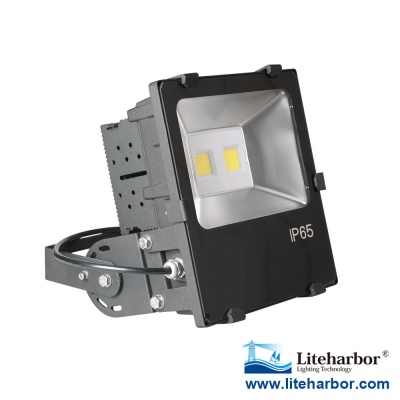

Die Casting Aluminum Scale-Type Heat Sink LED Flood Light 100W
Die Casting Aluminum Scale-Type Heat Sink LED Flood Light 100W0

Die Casting Aluminum Scale-Type Heat Sink LED Flood Light 100W

ITEM No.: FL-007-100
Wattage : 100W
Material : Die Casting Aluminum
IP Rating : IP65
Listing : ETL, CE, ROSH

+86-757-8180-8675 Info@liteharbor.com
Bookmark and Share

Die Casting Aluminum Scale-Type Heat Sink LED Flood Light  100W



Specification

Adopt the zero distance aerodynamic cooling module system made of screw-free type die-casting molding flake aviation aluminum alloy material.
Used the top super bright LED chips imported with original packaging from U.S..
With the advantage of free maintenance, ultra low temperature rise, low light decay, easy disassembly.
It's the top super performance product in the LED industry currently.



Data

Item No.:   FL-007-100

Material:   High Strength Aluminum Alloy
Power:   100W

IP Rating:   IP65
Lumen:   11000LM

Temperature Rise:   <60°C
Lifespan of Chip:   >50000 Hrs

Light Distribution Mode:   LED+ Condensing Lens Group + Toughened Glass
Lifespan of Lamp:   >4~5 Years

Beam Angle:   120°
Input:   AC85~265V  /  50~60Hz

LED Q'ty:   2PCS
Power Factor:   >95%  /  >65%

Emitting Color:  Pure White, Warm White, Cool White
Listing:   ETL, CE, ROSH

LED Driver:   Built-in waterproof 120-277V power supply



Technical Highlights

1. The heat conduction system takes the solution used of flake die casting aluminum, which is the current LED industry's top effective heat conduction material.
2. The cooling module uses the aviation aluminum alloy precision casting and become, equipped with 22 pieces of 270x249mm zero distance high heat Aluminum Alloy scales, integrally formed by aerodynamic layer iterative, and uses a spring type screw free disassembly scheme, the whole lamp protection grade reaches IP65, the whole light weight 4.62KG, temperature control at 45~55 DEG C, belongs to the industry's top ultra-low temperature rise, belongs to the most top 100 w in the end the cooling module configuration.
3. The LED chip using high coefficient of thermal conductivity of pure copper stent and the tension is three 99% pure gold silver plated line double clean anti-static packaging.
4. LED chip under normal and stable operation, the integral sphere measured 140~150lm/w, the brightness performance takes the first place in the global LED industry.
5. The LED driver using constant current constant wide voltage AC85 ~ 265 v national energy conservation certification scheme, and USES the pure high thermal conductivity to IP67 is three potting sealant, drive electro-optic conversion efficiency and performance in the end of the LED driver first.
