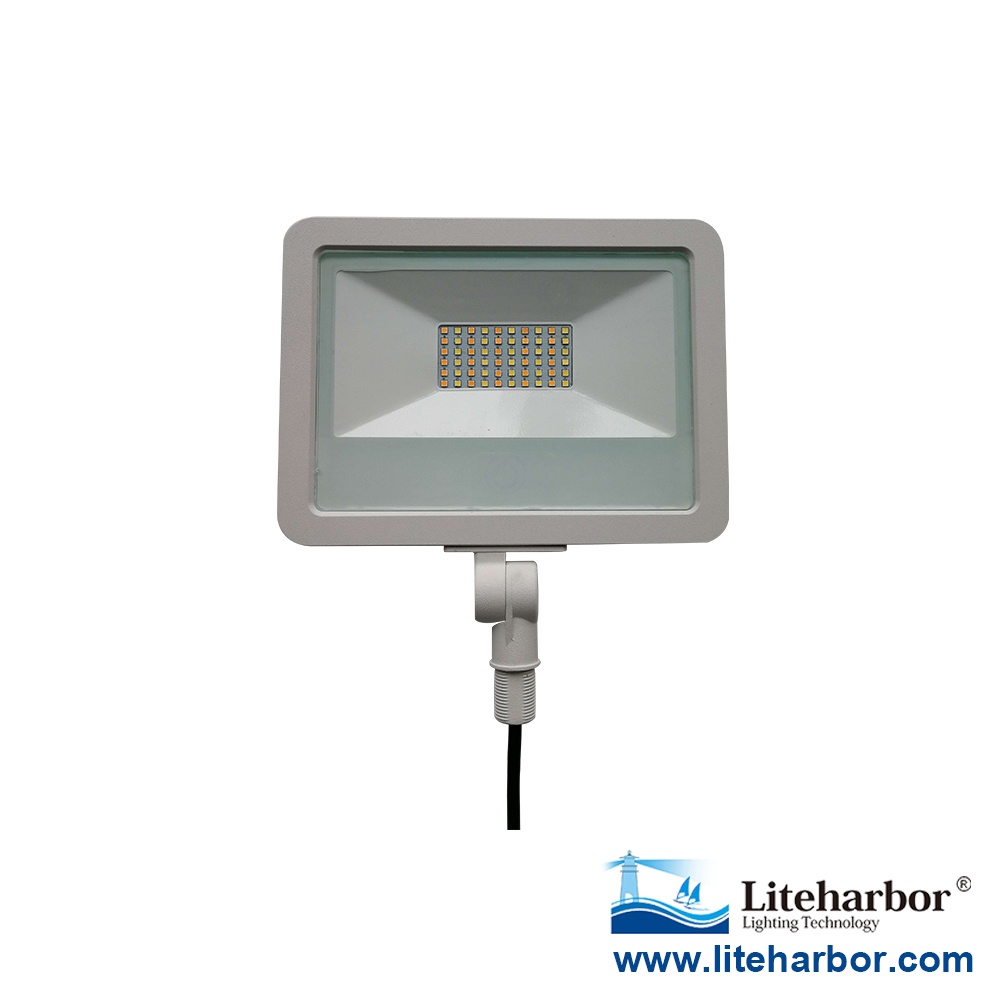

- Ultra-thin streamlined external light design and LED structure features organically combined, the appearance is simple.
- 4mm tempered clear glass, light transmittance up to 95%, reduce the light loss.
- High density die casting aluminum lamp body with reasonable heat dissipation design to ensure the service life of lamps.
- Adopt brand LED light source.
- Outdoor professional static outdoor plastic powder sprayed on surface, anti-UV, anti-corrosion and weather resistance is strong.
- Unique touch switch dimming function: 3CCT (3000K/4500K/6000K).
- Unique outdoor wall switch color temperature control function 3CCT (3000K/4500K/6000K)
- Lighting structure, electrical safety compliance with EN60598 GB7000 standard requirements.
- Electric shock protection: Class I
- IP rating: IP66
Applications
Suitable for factories, gymnasiums, wharfs, billboards, buildings, lawn, gardening design and other lighting and decorative lighting places.
Parameter
Item No.
DG5212
DG5212A
Input Voltage
AC 120V
AC 120V
Frequency Range
50-60Hz
50-60Hz
Light Source
64 PCS
128 PCS
Power Factor
>0.95
>0.95
Total Harmonic Distortion
<15%
<15%
System Power
10W
20W
Light Distribution Optional
120 degree
120 degree
Luminous Efficiency
>100lm/W
>100lm/W
Luminous Flux
3000lm
5000lm
Applicable Ambient Temperature
- 30 -- 45°C
Working Temperature
RH10％-90％
CCT
Warm White 2700K
Pure White 4500K
Cool White 6000K
