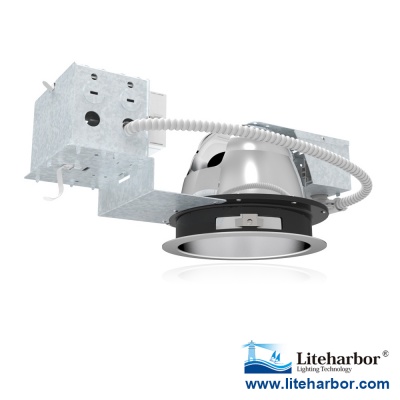

8 Inch Horizontal Compact Fluorescent Architectural Housing

8 Inch Horizontal Compact Fluorescent Architectural Housing

ITEM No.: AF8-HA
Input : 120V/ 277V
light source : fluorescent
Through branch witing : 4 in-4 out
Watt : 2*42W max
Listing : cETLus

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

8 inch horizontal recessed fluorescent lighting fixtures



Mounting

Constructed from 16-gauge steel, die-formed construction for max heat dissipation and rust protection

Precision tooled springs secure trim to mounting frame for effortless and tool-less installation

Compatible with C-channel, flat bar wood joist bar hanger and EMT.

Fully assembled for ease of installation

Non-IC housing require a minimum clearance of 3" around from thermal insulation and 1/2" from combustible material from above the fixture



Junction Box

Pre-wired junction box provided with 1/2" and 3/4" knockouts

Provided with removable access plates

Knockouts equipped with pry out slots

All leads are #18AWG wire, the ground wire connected to the bottom and quick connectors are supplied on all leads

Through branch circuit wiring (4 in, 4 out)



Socket Cup

Adjusts vertically for optimum light performance

Die-cast fin construction for heat dissipation

Unitized optics guarantees proper trim to housing installation

Tool-less installation adjustability from either outside the housing or inside the housing



Reflector

High quality reflector with 1.2mm thickness available finishes and types in multiple architectural finishes and types.

Optional painted white flange is available

Single position optics eliminate possibility of specified lamp being installed in incorrect position



Thermal Protector

Meet ETL requirements

Standard thermal protection device guards against improper installation, over lamping and misuse of insulation material

External thermal device located on the junction box wrap



Ballast

Thermally protected

Electronic ballast provides full light output and rated lamp life

Flicker free and noise free operation and starting

End of lamp life protection is standard

Meet FCC EMT/FRI consumer limits

Attached to junction box cover so it may be serviced from below the ceiling no tools required



Lamp

13/18/26/32/42/2*13/2*18/2*26/2*32/2*42W 4 pin

Universal G24 4-PIN

CRI>80%

PF>0.9

Color Temperature: 2700K-6500K



Listing

ETL listed for damp location W/Feed through
