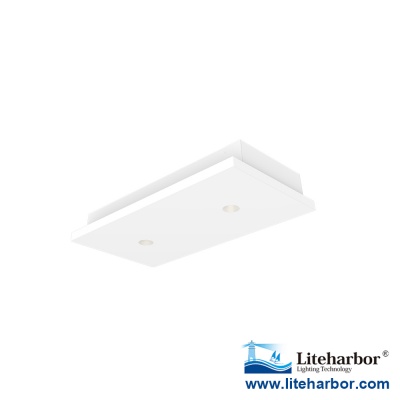

Liteharbor Surface Mounted Multi-lamp LED Mini Spotlight
Liteharbor Surface Mounted Multi-lamp LED Mini Spotlight5 Liteharbor Surface Mounted Multi-lamp LED Mini Spotlight4 Liteharbor Surface Mounted Multi-lamp LED Mini Spotlight3 Liteharbor Surface Mounted Multi-lamp LED Mini Spotlight2

Liteharbor Surface Mounted Multi-lamp LED Mini Spotlight

ITEM No.: X-Light-FMX
Shape : Round/Square
Input Voltage : 120-277V AC
Lamp Voltage : 36V
Lumen : 1400lm/lamp
CRI : 80+/90+
CCT : 3000K/4000K/5000K/6500K
Beam Angle : 30 Degree
Lifespan : 100000 Hours
Mounting : Surface Mounted

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

Liteharbor Surface Mounted Multi-lamp LED Mini Spotlight



Description
Xiangfei X-Light series, it provides a quick and convenient installation method, provides the solution of the edge of architecture lighting, and makes a big breakthrough in the use and design. 1 inch (∅25mm) of the light-emitting surfacethe size to achieve the ultimate. Deep housing design with high luminous efficiency, uniform illumination, long life (50000 hours), and glare prevention. Achieve soft lighting without seeing the light source.


Features
- Xiangfei X-light series with square and circular light emission effect.
- Professional light distribution devices, no glare, perfect control light, spot even transition.
- Each series has 1-4 light combinations, providing multiple style options.


Lamp Body
- Ultra thin, the height of the whole lamp is only 23mm .
- Ultra small light emitting surface, only 1 inch (∅25mm).
- All-in-one die casting lamp body with unique appearance.
- Double-sided heat dissipation, can be made into IC type directly.
- The anti-pull device is hidden inside the lamp body.



Light Source
High power, high luminous flux illumination, long life LED chip, 3000K, 4000K, 5000K color temperature are optional, color
rendering index: 80+, 90+. Lifetime luminous flux maintenance rate: 70%.



Power Supply
- Wide voltage input 120-277VAC, 50/60 Hz, 0-10V dimming, constant voltage and constant current mode.
- The power has UL listed, can be applied to a variety of applications.
- Integrated power supply, easy to replace the power supply.
- The input voltage of each lamp is 36V, the load termin can be used independently.
- Each luminaire is connected in parallel, one power supply can simultaneously control the use of  five lamps.



Lamp

Item No.: X-Light-FMX(X represents the number of lamps)

Wattage: 16W Max./lamp
Input Voltage: 36V
CCT: 3000K/4000K/5000K/6500K
CRI: 80+/90+
Luminous flux: 1400lm/lamp
Light source: LED
Dimming: 0-10V Dimming
Life span: 100000Hours

Power Supply
Wattage: 120W Max .
Input Voltage: 120-277V AC
Frequency: 50/60 Hz
Output Voltage: 36V
Electric current: 3.4A Max .
Power Factor: >0.9
Dimming: 0-10V Dimming


Accessories
Radiator: It is made of die-casting aluminum material with high thermal conductivity and aluminum alloy. The air convection
chamber is reserved inside and outside. It is light, efficient, material-saving, energy-saving, beautiful, and environmentally friendly. It fully considers convection, conduction and radiation of the lamp body. The outer surface is treated with a black surface to ensure sufficient radiation.
Lens: Professional optical PMMA lens.
Round reflector cup: Large lamp shielding angle (60 degrees), effectively preventing glare. Environmental protection
electrostatic powder coating surface treatment process, durable wear, avoid stray light, soft and comfortable light.

Mounting
Specially introduced surface mounted, recessed mounted, pendant mounted X-light, simplify installation requirements. And
each series has 1-4 light combinations, providing multiple style options.



Applications
Apply to residential, offices, hotels, include the airports, shopping malls, gymnasiums and other high altitude ceiling sites.



Listing / Warranty
ETL listed to US and Canadian standards for damp location.
5 Year Limited Warranty.
