Line Voltage 4 Inch Remodel NON-IC Housing

ITEM No.： AL4R
Housing : Die-formed aluminum
Input : 120V/ 277V
Light source : COB LED
Color Temperature : 2700K-6500K
Wattage : 16W

+86-757-8180-8675 Info@liteharbor.com

DOWNLOAD PDF:Spec Data

Product Details
Feedback
CUT SHEET
Company Profile
E-catalogue
Certificates

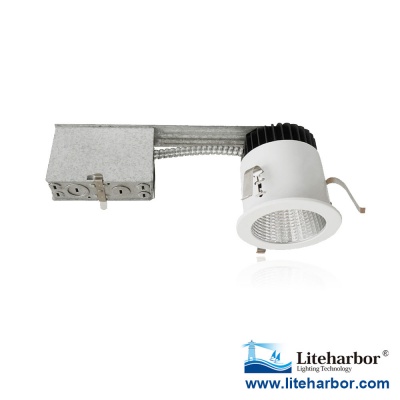

Line Voltage 4 Inch Remodel NON-IC Housing

Features

Uniquely Designed for New and Existing Construction

Idea for Places Where Edison Base Sockets Have Been Banned

Environment Friendly no Cd or Hg included

Good Heat Dissipation More Safe to Use than LED Bulbs

LED Light Engine is attached to the die-cast heat sink and is easily replaceable and upgradable

High CRI>80%

50000 hours' life time

Spot Distribution is Idea for Task Lighting Applications

Housing

Die-formed aluminum for maximum heat dissipation and rust protection

Designed for New Construction installation and suitable for using in non-insulation covered ceilings

Housing adjusts to 1/2" to 1 3/8" ceiling thickness. Trims are held in place with high tension clips

Housing is Non-IC rated must be kept at least 3" away from insulation

Junction Box

ETL listed for through branch wiring

1/2" and 3/4" romex wiring knockouts and four romex knockouts with integral strain clamps, all knockouts have true pry-out slots

J-Box is designed for straight through conduit runs

Fixture fully assembled including pre-wired ballast for easy installation

Removable access plates for easy installation

Heat Sink

All our heat sinks are made of 6063 aluminum

Scientific design ensure good heat dissipation

Finish oxidize black color

Reflector Trim

Especially designed for COB light no glare

No visible hardware

All reflector trims using 3002 aluminum ensure good color consistency even though after long time high temperature working

Transmittance>90%

Durability

Die-cast system pulls heat from the LED chip allowing continued cool operation for years

LED output will be maintained at 70% if initial lumens at 50000 hours of operation

Our superior design allows for installation in construction where Air-Shut^TM is required

Thermal Protection

Standard thermal protection device guards against improper installation and misuse of insulation material

LED Light Engine & Electronic System

120V/277V 50/60Hz input

Less than 20% THD will be produced

Power Factor>90%

Thermally protected for additional safety

Driver is installed on the junction box cover easy accessible for service from the ceiling

Class 2 power supply

Over voltage, over current and short circuit protection: Auto recovery

Dims down to 10% with electronic low voltage (ELV) reverse phase control dimmers

CRI>80%

Color Temperature 2700K-6500K

Cree, Citizen, Epistar all are available

16W max

liteharbor office

DOWNLOAD PDF:Spec Data
DOWNLOAD IES:IES File

Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.

Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.

Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment. Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made. Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you. Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
