PRODUCT CATEGORY

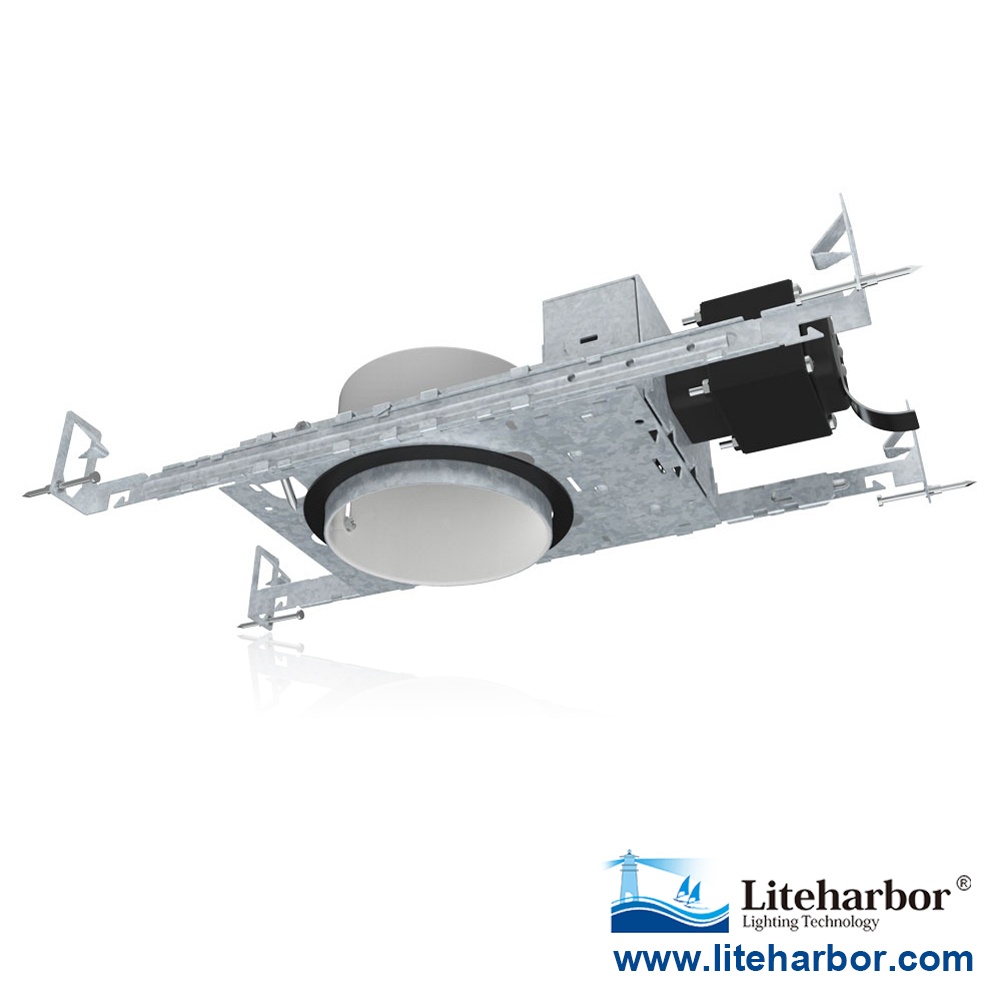

Housing
Die-formed aluminum for maximum heat dissipation and rust protection
Designed for New Construction installation and suitable for using in non-insulation covered ceilings
Housing can be installed in 1/2" to 1-3/8" thick ceilings.
Hanger Bar
Allow housing to be positioned and locked at nay point within a 24" joist span.
Can be shortened for 12" joists
Can be positioned on long or short axis of the housing
Contain integral nail
Hanger fit onto T-bar spline for quick alignment
Junction Box
ETL listed for through branch wiring
4 in-4 out J-box
Designed for straight through conduit runs
1/2" and 3/4" romex wiring knockouts
Pre-wired junction box provided with removable access plate
Knockouts equipped with pry out slots
All leads are #18AWG wire, ground wire is connected to the bottom, quick connectors are supplied on all leads
Transformer & LED Electronic Driver
Magnetic Transformer
Electronic Transformer
LED electronic driver for use with 12V MR-16 LED Lamps
Class 2 15W max Load driver
Full rage ELV dimming to 10%
Dimming in 120V only
Lamp & Socket
LED MR16 Lamp 10W max, MR16 incandescent 50W max
GU5.3socket
CRI>80%
PF>0.9
Color Temperature: 2700K-6500K
Listing
ETL listed for damp location W/Feed through

Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.




Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.

Liteharbor offers a complete product line of Recessed Downlight, LED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.
Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment.
Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made.
Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.
Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
4 Inch Low Voltage Eyeball Tim Code:
BD4003
4 Inch Low Volt. Pinhole Trim Code:
BD4004
4 Inch Low Volt. Large Pinhole Trim Code:
BD4004L
4 Inch Gimbal Trim Code:
BD4012
4 Inch Low Volt.Gimbal Ring Trim Code:
BD4007
4 Inch Low Volt. Reflector Trim Code:
BD4002
Low Voltage 4 Inch Baffle Trim Code:
BD4001
4 Inch Low Volt.Regress Rotating Die Casting Eyeball Trim Code:
BD4009
4 Inch Low Volt.Retractable Die Casting Trim Code:
BD4010
4 Inch Low Volt.Square Baffle Trim Code:
BD4011
4 Inch Recessed Gimbal Trim Code:
BD4008
4 Inch Low Volt. Large Gimbal Ring Trim Code:
BD4007L
4 Inch Low Volt. Wall Wash Trim with reflector Code:
BD4026
4 Inch Low Volt. Wall Wash Trim with Baffle Code:
BD4016
4 Inch Low Volt. Slot Baffle Trim Code:
BD4015
4 Inch Low Volt. Slot Trim with Reflector Code:
BD4025
4 Inch Low Volt. Reflector Pinhole Trim Code:
BD4024
4 Inch Low Volt.Pinhole Trim Code:
BD4014
4 inch Wall Wash Reflector with Spread Lens 40° Adjustment Code:
BD4326
4 inch Low Voltage Clear Reflector with Drop Glass Code:
BD4902
4 Inch Square Baffle Reflector Trim Code:
BDS4001
4 Inch Low Volt. Shower Reflector Trim with Albalite Code:
BD4402
4 Inch Shower Baffle Trim with Frosted Lens Clear in Centre Code:
BDS4701
4 Inch Shower Baffle Trim with Albalite Code:
BDS4401
4 Inch Low Volt. Shower Reflector Trim with Frosted Lens Code:
BD4802
4 Inch Shower Reflector Trim with Frosted Lens Clear in Centre Code:
BDS4702
4 Inch Square Reflector Trim Code:
BDS4002
4 Inch Square Gimbal Trim Code:
BDS4007
4 Inch Low Volt. Shower Baffle Trim with Frosted Lens Code:
BD4801
4 Inch Shower Baffle Trim with Frosted Lens Code:
BDS4801
4 Inch Shower Reflector Trim with Albalite Code:
BDS4402
4 Inch Shower Baffle Trim with Fresnel Lens Code:
BDS4301
4 Inch Low Volt. Shower White Reflector Trim Code:
BD4702
4 Inch Shower Reflector Trim with Frosted Lens Code:
BDS4802
4 Inch Low Volt. Shower Baffle Trim with Frosted Lens Clear in Centre Code:
BD4701
4 Inch Shower Baffle Trim with Fresnel Lens Code:
BDS4302
4 Inch Low Volt. Shower Reflector Trim with Dome Lens Code:
BD4602
4 Inch Square Retractable Trim Code:
BD4017
4 Inch Low Volt. Shower Baffle Trim with Dome Lens Code:
BD4601
4 Inch Low Volt. Reflector Shower Trim with Drop opal Code:
BD4502
4 Inch Low Volt. Shower Baffle Trim with Drop opal Code:
BD4501
4 Inch Low Volt. Shower Baffle Trim with Albalite Code:
BD4401
4 Inch Low Volt. Reflector Trim with Fresnel Lens Code:
BD4302
4 Inch Low Volt. Shower Baffle Trim with Fresnel Lens Code:
BD4301
4 Inch Low Volt. Slot Trim Code:
BD4005
