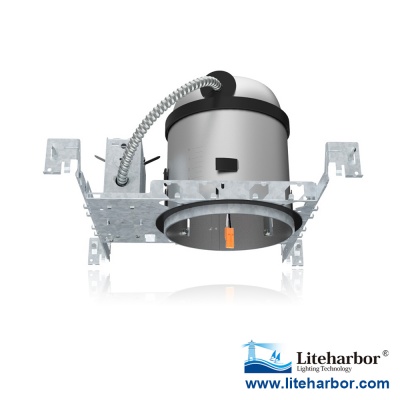

Line Voltage 6 Inch New Construction IC Airtight LED Downlight Housing

Line Voltage 6 Inch New Construction IC Airtight LED Downlight Housing

ITEM No.: A6-LIA
Input : 120V
Size : 6 inch
Material : Aluminum
Lamp : COB
Listing : ETL listed

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

Line Voltage 6 Inch New Construction IC Airtight LED Downlight Housing

Housing
Die-formed aluminum for maximum heat dissipation and rust protection
Housing adjusts to 1/2" to 1 3/8" ceiling thickness. Trims are held in place with high tension clips
Housing is IC rated for direct contact with insulation and can be used in IC and NON-IC applications.

Connection
Polarity-specifi c EZ-connect system engineered to match with Module LED trims.
Meets strict code requirements where Edison Base Sockets have been banned.

Hanger Bar
Allow housing to be positioned and locked at any point within a 24" joist span.
Can be shortened for 12" joists
Contain integral nail
Hanger fi t onto T-bar spline for quick alignment

Junction Box
ETL listed for through branch wiring
1/2" and 3/4" romex wiring knockouts and four romex knockouts with integral strain clamps, all knockouts have true pry-out slots
J-Box is designed for straight through conduit runs
Removable access plates for easy installation

Thermal Protector
Standard thermal protection device guards against improper installation and misuse of insulation material

Air-Shut
Provided with gasket to prevent airfl ow from heated or air-conditioned spaces. Meets or exceeds
all national air fl ow requirements.

Listing & Warranty
ETL listed to US and Canada standards for wet locations
5-year limited warranty
