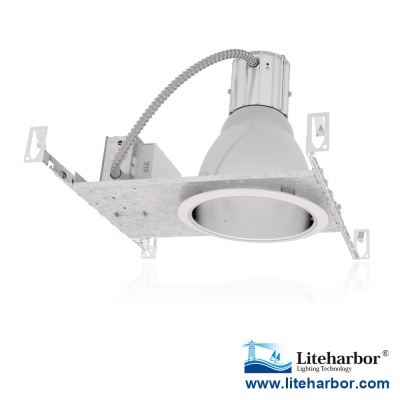

8 Inch Vertical Commercial Recessed Housing

8 Inch Vertical Commercial Recessed Housing

ITEM No.: A8-VC
Input : 120V/ 277V
Watt : LED 24W Max
light source : LED
Lamp : Par38
Listing : cETLus

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

8 Inch Vertical Commercial Recessed Housing



Mounting

Constructed from 16-gauge steel

Frame includes bar hangers with nails for wood joist

Installed spring steel friction clips

Adjustable 14"-25" for precise placement

Bar hangers include T-bar notch for T-grid ceiling installations

Fully assembled for ease of installation

Must be kept at least 3" away from insulation



Junction Box

Pre-wired junction box provided with 1/2" and 3/4" knockouts

Provided with removable access plates

Knockouts equipped with pry out slots

All leads are #18AWG wire, the ground wire connected to the bottom and quick connectors are supplied on all leads

Through branch circuit wiring(4 in, 4 out)



Reflector

High quality reflector with 1.2mm thickness available in multiple architectural finishes and types

Optional painted white flange is available

Single position optics eliminate possibility of specified lamp being installed in incorrect position



Socket

E26 medium base



Lamp

PAR30/PAR38 LED 24W Max.

E26 medium base

CRI>80%

PF>0.9

Color Temperature: 2800K-6500K



Listing

ETL listed for damp location W/Feed through

  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File
