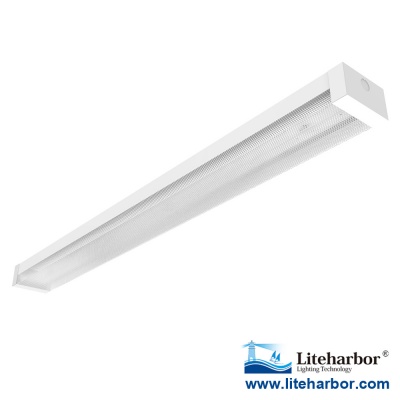

High End Surface Mounted 40W/80W LED Wrap/Linear Light from Liteharbor Manufacturer

High End Surface Mounted 40W/80W LED Wrap/Linear Light from Liteharbor Manufacturer

ITEM No.: WP-46/WP-86
Power : 40W/80W
Voltage : 120V ~ 277V AC
CRI : 80+/90+
Dimmable : NONE/0-10V
Certification : ETL listed
Length : 4ft/8ft

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

High End Surface Mounted 40W/80W LED Wrap/Linear Light from Liteharbor Manufacturer



Features
WP-46/WP-86 is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light,
is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Beam Angle: 180 °.
Available in 1x4 and 1x8 models.
Emergency system is available.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 v dimming.
IP Grade:IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.


Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.


Light Source
Using the energy-saving highlighting 2835 SMD LED light source.

Distributed LED array in a variety of lumen output packages.

LED color is available in 2700-6500K. Module is replaceable.


Mounting
Luminaires may be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.


Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.



Specification

Power 40W/80W
Voltage 120V ~ 277V AC
Frequency 50/60Hz
CRI 80+/90+
Dimmable NONE/0-10V
Power Factor >0.98
CCT 2700-6500K
Certification ETL listed
Lifespan 50000 H



Packing
Inner box: 140*80*1225mm 1 pcs/Box     Outer box: 124*29.5*18.5CM   4PCS/CTN

  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File









    Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

    Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.



    Liteharbor offers a complete product line of Recessed DownlightLED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.



        Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment.     Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made.     Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.     Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
