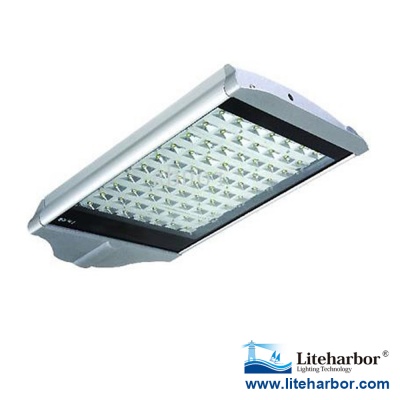

LED Street Lights China Manufacture

LED Street Lights China Manufacture

ITEM No.: ST-007
product series : led street light
lamp : LED
material : aluminum
wattage : 90W
ODM & OEM : acceptable

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

LED Street Lights China Manufacture

IP rating: IP65
Working life: >50000h
Main material:aluminum alloy
system consumption: 90W
LED Luminous Efficiency: >90LM/W
LED Initial Flux:>7560LM
84w led street light

Input voltage: AC85~265V
Frequency range: 50-60HZ
(PF)power factor: >0.95
power factor: >90%
Led consumption: 84W
system consumption: 90W
LED Luminous Efficiency: >90LM/W
LED Initial Flux:>7560LMLamp's efficiency: >95%
Color Temperature:warm white:3000-4000K;
pure white:4000-6300K;
cool white:>6300
(CRI) Color Rendering Index:Ra>85
Light Distribution Curve/Beam Pattern:Asymmetric(Bat Wing/Rectangular Beam
IP rating:     IP65
Working life:  >50000h Main material:aluminum alloy
Size:506*308*80mm
(E)Average Illumination:6M height >33Lux;8M height >22Lux;10M height >20Lux;12M height >18Lux;
Effective Llluminated Area:6M height 6*21m²;8M height 8*28m²;10M height 10*35m²;12M height 12*42m²;

Features:
High luminous efficiency :90-100LM / W
Long life: LED lamp life of up to 5-7 years;
Healthy Lighting: Low heat, no heat radiation, mercury, sodium and other elements harmful to human health
Beneficial to the environment: LED light for the whole solid, impact resistance not broken, waste recycling pollution can be called "green lighting"

Material:
The lights applied with best light source-LED/Bridgelux chips. Accelerated the unique reflector which was developed by us ourself,it
attains the light onto the road with maximum effect and formed a rectangular light spot.The entire light was made of
the aluminum alloy with high index of the heat dissipation,the oxidize surface also ensured the heat dissipation
reliability.Meanwhile the lamp has been designed a respiratory system to ensure the dust resistance,water resistance
and self cleaning ability

Uses:
The lights mainly applied in high-way ,urban major road ,secondary road,plaza,park,industry zone,residence area etc.
applied to urban roads and secondary roads and residential lighting, sidewalk
for the landscape lights, garden lights lighting
used in mines, ships, machine tools, such as lighting.
can directly replace the incandescent lamp, energy saving lamp, lamp, mercury lamps sodium lamps without changing the original holder.
