Liteharbor Elegant Designed SMD LED Vanity Light
Liteharbor Elegant Designed SMD LED Vanity Light2 Liteharbor Elegant Designed SMD LED Vanity Light1 Liteharbor Elegant Designed SMD LED Vanity Light0

Liteharbor Elegant Designed SMD LED Vanity Light

ITEM No.: DG-ST-X-LVA
Input Power : 20/30/40W
Input Voltage : 120-277V
Frequency : 60Hz
Power Factor : PF>0.98
Dimming : NONE/0-10V

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

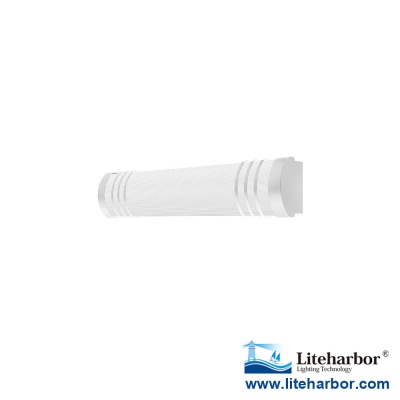

Liteharbor Elegant Designed SMD LED Vanity Light



Description
This is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance led vanity light.
Customized residential and Commercial Lighting applications with this LED cylinder vanity light.
The contemporary cylinder is constructed of an acrylic diffuser with housing available in either a brushed nickel or chrome finish.

The included canopy/junction box cover is removable for a more low profile look (2'-4' lengths only)

The white acrylic diffuser provides even illumination and softens the appearance of the LEDs for improved aesthetics.



Features

Using imported high transmittance PC cover, retain color for long time.
Available in 1x2, 1x3 and 1x4 models.
Beam Angle: 180 °.

Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.



Light Source
Using the energy-saving highlighting 2835 SMD LED light source.
Distributed LED array in a variety of lumen output packages.
LED color is available in 2700-6500K. Module is replaceable.

Standard dimming control: 0 ~ 10 v dimming.



Mounting

Wall mounted.



Driver

Using isolation constant-current driver power, is the guarantee of security, stability and no flicking.



Listing&Warranty
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, damp location.
Warranty: 5-year limited warranty on LED and Driver.



Specification

Length 2FT/3FT/4FT
Input Power 20/30/40W
Input Voltage 120~277V
Frequency 60Hz
Power Factor PF>0.98
CRI 80+/90+
Dimmable NONE/0-10V
CCT 2700-6500K
Lifespan 50000 H
Listing ETL Listed



Packing

2ft: 610*123*93mm
Inner box: 615*130*100mm 1 pcs/Box     Outer box: 63*42*15.5CM   4PCS/CTN



3ft: 915*123*93mm
Inner box: 920*130*100mm 1 pcs/Box     Outer box: 93.5*42*15.5CM   4PCS/CTN



4ft: 1219*123*93mm
Inner box: 1225*130*100mm  1 pcs/Box     Outer box: 124*42*15.5CM   4PCS/CTN
