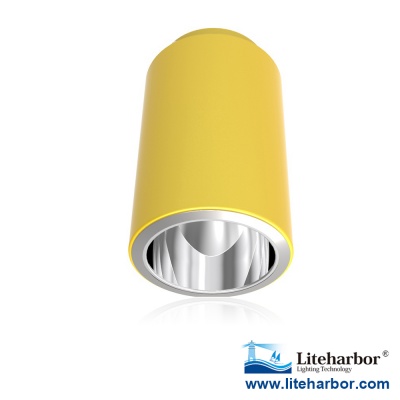

Architectural cylinder with Specification grade reflector available with 6 inch aperture, Standard mounting options are: surface mount, wall mount and 24” pendant. Consult factory for custom pendant lengths. Cylinders can be ordered with an optional lens where required.
Durable aluminum spun housing
Reflector options designed to optimize vertically mounted lamps
No visible hardware
Available for surface, pendant or wall mount
Gasketed lens options
Accessories:
Open reflector compatible with Decorative Drop accessories. See next page.
LED Light Engine:
Nominal input power = 18W
Nominal delivered lighting output = 1100lm
30° beam spread
2700K/3000/3500/4000K color temperature
83 CRI
LED’s mounted to die cast aluminum heat sink 50,000 hours, average rated life at 70% output
Fixture should not be installed in applications with an ambient temperature above 50°C.
Applications with an installation above 50°C will result in reduced lamp life and void warranty
LED module is easily upgradable to accommodate future solid state lighting technology.
Electrical System:
120V/277V 50/60Hz input
1040 mA constant current output Class 2 power supply
Over-voltage, Over current and short circuit protection: auto recovery
MTBF > 100,000 hours
Dimming Options: 0-10V dimming down to 5%, Lutron Hi-lume® down to 1%
Finishes:
Cylinder housings are available in standard finishes of natural aluminum, or durable powder coated white or black. Cylinders feature optional high quality clear specular or haze reflector. Consult factory for custom finishes and additional reflector options.
Mounting:
Ceiling mount for direct installation to 3” and 4” octagon junction box or 4” square junction box.
Wall mount bracket for installation to 4” octagon or square junction box.
Pendant stems supplied with complete canopy assembly. Pendant stems are field cuttable and can be modified in the field.
