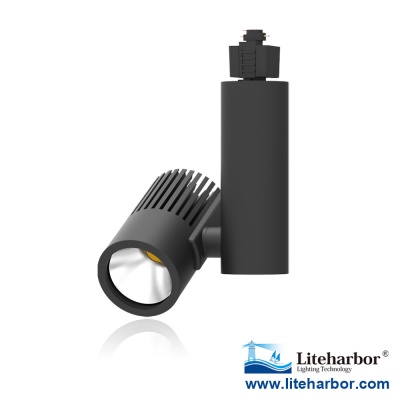

COB LED Track Light K3023M

COB LED Track Light K3023M

ITEM No.: K3023M
Series : LED Track Light
Light Source : COB LED
Input volt : 120V-277V
Wattage : 32W
Lumen : 2550 Lumen

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

COB LED track light K3023M

LED Light Engine
• Color Temperature 2700K-6000K
• CRI 80+
• 3 Step MacAdam (3 SDMC)
• Passive aluminum heat sink
• 50,000 hrs average rated life

Electrical System
• 120V/277V 50/60Hz input
• Over voltage, over current and short circuit protection: Auto recovery
• MTBF > 100,000 hours

K3023L
Single head, 50 Watt, 4100 Lumen
Finish: White/ Black/ Silver/ Satin Nickel

K3023M
Single head, 32Watt, 2550 Lumen
Finish: White/ Black/ Silver/ Satin Nickel

K3023M2
Twin heads, 64 Watt, 5100 Lumen
Finish: White/ Black/ Silver/ Satin Nickel

K3023S
Single mini head, 10 Watt, 850 Lumen
Finish: White/ Black/ Silver/ Satin Nickel

Optics
16° Spot, 24° Narrow Flood, 32° Flood, and 50° Wide Flood

Dimming
Track Dimming
• (ELV) reverse phase control dimmers. 120V only.
• Dimmable 100 – 10%

 Canopy Dimming
• ELV Dimming 120V
• 0-10V Dimming 120V or 277V

Compatibility
Track luminaire is designed for use with the following track systems:
• Single Circuit/Single Neutral 120V
• Two Circuit/Single Neutral 120V (No Dimming)
• Two Circuit / Two Neutral 120V
• Two Circuit / Two Neutral 277V

Listing & Warranty
ETL Listed to US and Canadian standards for dry locations
5 Years Limited Warranty



  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File
