12V dimmable led track lighting from Liteharbor

12V dimmable led track lighting from Liteharbor

ITEM No.: K1063
Input voltage : 12V
Lamp : LED MR16 8W max.
Material : Die cast aluminum
Finish : Black/ White/ Silver or customized
Wires : 2/ 3/ 4 wires track
Shape : Cylinder

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

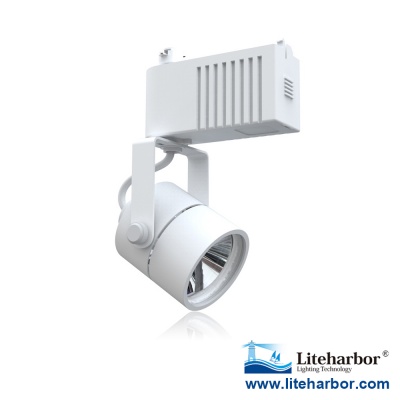

12V dimmable led track lighting

K1063

Low Voltage Cylinder Track Head



Description

Low voltage die cast aluminum designer cylinder fixtures with MR16 light source. Yoke provides full adjustment of light source for special aiming. Dual tightening knobs assure secure lock on vertical angle position.



Features

  1. Die cast aluminum rear body provides superior strength and rigidity.
  2. Low profile, aesthetic design.
  3. Fully adjustable, firm angle position.
  4. One or two circuit track capable.



Housing

Iron / die cast aluminum construction; cylindrical with design features. All edges are softened for aesthetic appearance. Perforated spherical screen in rear functions as wire outlet and provides additional design benefit.



Socket

GU5.3 MR16



Lamp

LED MR16 8W max.



Transformer

Solid state electronic transformer provides noise-free voltage reduction and operation. If dimming, use electronic low voltage rated only dimming controls. Integral Unit: 120V/60Hz Input; 12V Output; 50VA Max. load



Finishes

Black, White and Satin Nickel heat rated baked enamel paint.

Custom painting or anodizing for special applications is also available. Custom finishes will require lead times that vary depending on vendor schedule. Please consult factory for quotation.



Wiring

Teflon coated wire lead connects socket and housing to electrical contact head. Teflon coating is durable and resists heat degradation from lamp and housing radiation.



Listing

c-ETL-us Listed

Warranty

Two Year Limited Warranty.
