LED Ceiling Mounted Track Light From Liteharbor
LED Ceiling Mounted Track Light From Liteharbor0

LED Ceiling Mounted Track Light From Liteharbor

ITEM No.: FM1523
Series : LED Track Light
Lamp : LED MR16 8W max.
Input Voltage : AC100-240V 50/60HZ
CCT : 2700K-5000K
Working Lifetime : 20000Hrs
Luminous Flux : 610lm
Finish : Black/ White/ Silver or customized
Chip Supplier : Seoul

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

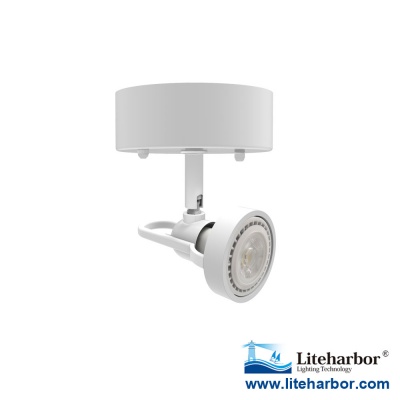

LED Ceiling Mounted track light From Liteharbor



Description

Ceiling mounting and low voltage die-cast aluminum designer gimbal fixtures with MR16 light source.Yoke/Swivel provides full adjustment position of light source for special aiming and dual tightening knobs assure secure lock on angle position.



Features

  1. Die cast aluminum rear body provides superior strength and rigidity.
  2. Low profile, aesthetic design.
  3. Fully adjustable, firm angle position.
  4. One or two circuit track capable.



Specification

Electric Shock Proof Protection Garde: Class II
IP Rating: IP23
Working Lifetime: 20000Hrs
Working Environment: -35℃- 40℃



Light Source (Order Separately)

LED MR16 GU5.3 8W Max.

Input Voltage: AC100-240V 50/60HZ
Power Factor: >0.9
Power Efficiency: 83%
Luminous Flux: 610lm
CRI: Ra>80
Chip Supplier: Seoul
Light Power Supply: Driver



Yoke/Swivel

Iron yoke/Swivel connects fixture housing to electrical contact head. Dual plastic angle tightening knobs maintain clean, decorative appearance of the fixture and provides secure angle position.



Housing

Iron / die cast aluminum construction. All edges are softened for aesthetic appearance. Perforated spherical screen in rear functions as wire outlet and provides additional design benefit.



Transformer

Solid state electronic transformer provides noise-free voltage reduction and operation. If dimming, use electronic low voltage rated only dimming controls. Integral Unit: 120V/60Hz Input; 12V Output; 50VA Max. load



Finishes

Black, White and Satin Nickel heat rated baked enamel paint.

Custom painting or anodizing for special applications is also available. Custom finishes will require lead times that vary depending on vendor schedule. Please consult factory for quotation.



Wiring

Teflon coated wire lead connects socket and housing to electrical contact head. Teflon coating is durable and resists heat degradation from lamp and housing radiation.



Listing&Warranty

c-ETL-us Listed

5-Year Limited Warranty.



Packing

Inner Box:  11.6*11.6*13.4CM 1pcs/ctn

Outer Carton:  48.5*36.5*29CM 24pcs/ctn

Gross Weight: 370g



  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File









    Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

    Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.



    Liteharbor offers a complete product line of Recessed DownlightLED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.



        Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment.     Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made.     Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.     Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
