12V Low voltage plug in track lighting

12V Low voltage plug in track lighting

ITEM No.: K1113
Input voltage : 12V
Lamp : LED MR16 8W max.
Material : Die cast aluminum
Finish : Black/ White/ Silver or customized
Wires : 2/ 3/ 4 wires track
Shape : Octagon

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

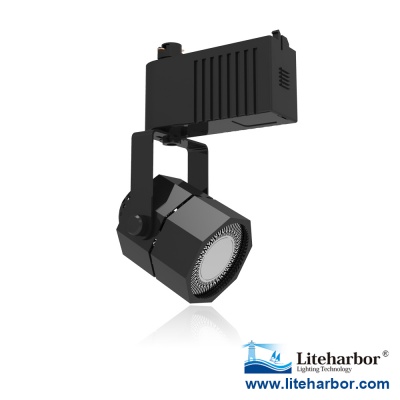

12V Low voltage plug in track lighting

K1113

Low Volt. Octagon track light



Description

Low voltage die cast aluminum designer octagonal fixtures with MR16 light source. Yoke provides full adjustment of light source for special aiming. Dual tightening knobs assure secure lock on vertical angle position.



Features

  1. Die cast aluminum rear body provides superior strength and rigidity.
  2. Low profile, aesthetic design.
  3. Fully adjustable, firm angle position.
  4. One or two circuit track capable.



Housing

Iron / cast aluminum construction; octagonal appearance and design features. All edges are softened for aesthetic appearance. Perforated spherical screen in rear functions as wire outlet and provides additional design benefit.



Socket

GU5.3 MR16



Lamp

LED MR16 8W max.



Transformer

Solid state electronic transformer provides noise-free voltage reduction and operation. If dimming, use electronic low voltage rated only dimming controls. Integral Unit: 120V/60Hz Input; 12V Output; 50VA Max. load



Finishes

Black, White and Satin Nickel heat rated baked enamel paint.

Custom painting or anodizing for special applications is also available. Custom finishes will require lead times that vary depending on vendor schedule. Please consult factory for quotation.



Wiring

Teflon coated wire lead connects socket and housing to electrical contact head. Teflon coating is durable and resists heat degradation from lamp and housing radiation.



Listing

c-ETL-us Listed

Warranty

Two Year Limited Warranty.



  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File









    Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

    Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.



    Liteharbor offers a complete product line of Recessed DownlightLED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.



        Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment.     Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made.     Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.     Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
