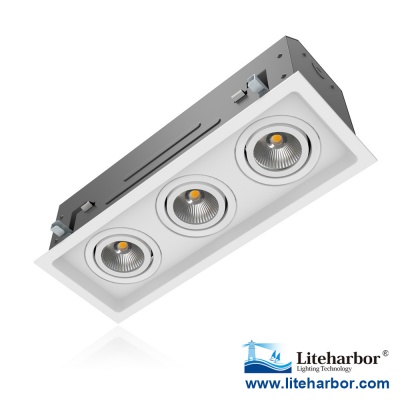

Residential 3-Lamp New Construction or Remodel Mini Multiple COB LED Downlight
Residential 3-Lamp New Construction or Remodel Mini Multiple COB LED Downlight0

Residential 3-Lamp New Construction or Remodel Mini Multiple COB LED Downlight

ITEM No.: G4013-E-R-COB
Series : LED Multiple Downlight
Light Source : COB
Input volt : 85-265V AC
CCT : 2700-6500k
Material : Gauge Steel
Trim Options : Trimmed or Trimless
Trim Baseplate : Open or Closed Design

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

Residential 3-Lamp New Construction or Remodel Mini Multiple COB LED Downlight



Description
Mini LED Multiple Spots for remodeling and new construction
applications for residential and commercial environments. The
Multiple Spots are marketed as complete units including the
housing and trim. Available as one, two and three-light
configurations, each spot is individually adjustable and
provides a 30-degree visual cutoff for glare control.



Features
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt, 360° horizontal rotation



Construction
Die-cast aluminum heat sink painted black. Trim and housing
are constructed of Gauge Steel.



Mounting
Available in 12.7mm-38.1mm thick ceilings
Fix the lamp by locking screw From below the ceiling
When Installing or removing the fixture, it won’t damage the ceilings



Light Source
High output COB LED Chips



Dimming
Dimmable to 10% with most brand dimmers.

Input Voltage AC 85-265V 50/60Hz
Rated Power 10W/Lamp
Luminous Efficiency 70 LM/W
Lamp COB
Color Temperature 2700-6500K
Material Gauge Steel
Power Factor > 0.98
CRI Ra80 / Ra90
