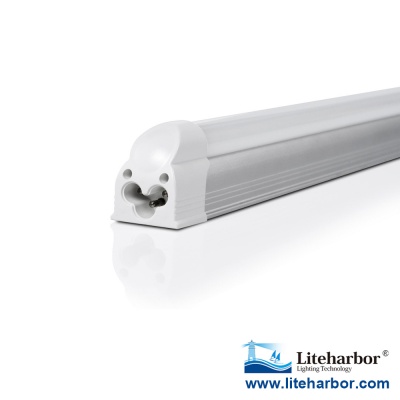

T5 12VDC LED Tube

T5 12VDC LED Tube

ITEM No.: DGT-T5
led : 3528 SMD
Length : 30cm or customized
lm : 70 lm/w
color temperature : 2700K-6000K
wattage : 4

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

T5 12VDC LED Tube

Description
Using integration aluminum pipe structure, good appearance, good heat dissipating capacity
Liteharbor T5 LED Tubes are energy efficient, environmentally friendly
No flicker, start quickly, soft light, protect your eyes
The LED T5 tubes are assembled with SMD 3528, high light efficiency, long life span
Isolated power supply is embedded safely inside the LED tube
Built-in 12VDC/12VAC constant current driver, high efficiency, stability
Linkable connector, easy to install and use
Energy-saving, can save energy more 80% than traditional fluorescent lights
Quick response time, the LED response time is nanosecond

Specification
Fitting t5 Lumen 235
Wattage 3/6/9/12/15W CRI >80%
Voltage 8-16VDC/9-15VAC Typical efficiency 70 lm/w
Average 50000 hours New Weight per piece
Color temperature 2700K-3000K Warm White
4000K-5000K Natural White
5500K-6500K Cool White Diameter 310*28*33.5 mm
LEDs 48pcs
Dimmable No
Warranty 2 years
Life frequency 50-60Hz Beam Angle 120 degree
Operating Temp. -20-65 Celsius degree Certificate rohs ce


Safety Instruction
Cut off the original line power before installation
Led tube lights can be installed directly with 12- VDC or 12VAC power (Higher DC/AC forbidden);
Non-professionals should not disassemble the LED lamp by themselves, including replace of the PC cover
Damage by corrosion will not be honored as materials defect claim. It is the user's responsibility to provide suitable protection against corrosive agents, such as moisture, condensation and other harmful elements.
Pay attention not to exceed the maximum operation temperature 65℃ at Tc point when the modules are used in enclosed environment
Pay attention to standard ESD precautions when installing the module
If there is any unusual problem when using, please contact us. The product couldn't be open optionally, or no warranty for it
