One Head/Two Head/Three Head Indoor and Outdoor LED Security Light
One Head/Two Head/Three Head Indoor and Outdoor LED Security Light14 One Head/Two Head/Three Head Indoor and Outdoor LED Security Light13 One Head/Two Head/Three Head Indoor and Outdoor LED Security Light12 One Head/Two Head/Three Head Indoor and Outdoor LED Security Light11

One Head/Two Head/Three Head Indoor and Outdoor LED Security Light

ITEM No.: DG5705
product series : LED Security Light
Voltage : AC100-277V
System Power : 10W
CCT : 3000K-6000K

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

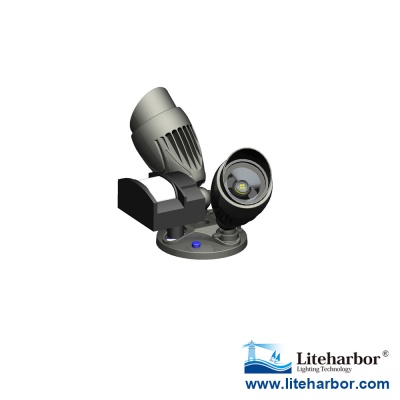

One Head/Two Head/Three Head Indoor and Outdoor LED Security Light



Features

- Smooth linear and LED structure features organically combined, the appearance is simple.
- P.I.R motion detectors functions, which realized the intellectualized design of product.
- The lamp adopts the 180 degree rotary structure, which can meet the needs of difference applications.
- Light source and electrical separate design, easy for installation and maintenance.
- Power supply, light source and mounting cover, the three divided and separate structure can be applied freely in various power and sizes.
- Professional optical design with efficient optical distribution, high efficiency, proving with variety of light distribution options.
- The lamp uses manual adjustment of color temperature, and rotary adjustment knob can achieve different lighting effects.
- Reasonable heat dissipation design to ensure the service life of lamps.
- Lighting structure, electrical safety compliance with EN60598 GB7000 standard requirements.
- Anti-electric shock protection: Class III
- IP rating: IP65



Parameter

Without Sensor and 3CCT

Item No. PF Light Source Luminous Effiency Operating Temperature IP Rating Lifespan
DG5705-1 >0.95 10Wx1 >80lm/W -30-50℃ IP65 50000hour
(5 year limited warranty)
DG5705-2 10Wx2
DG5705-3

10Wx3





With 3CCT

Item No. PF Light Source Luminous Effiency Operating Temperature IP Rating Lifespan
DG5705A-1 >0.95 10Wx1 >80lm/W -30-50℃ IP65 50000hour
(5 year limited warranty)
DG5705A-2 10Wx2
DG5705A-3 10Wx3





With Motion Sensors (Round or Square for option, 150°/180° or 240°/270° for option)

Item No. PF Light Source Luminous Effiency Operating Temperture IP Rating Lifespan
DG5705B-1 >0.95 10Wx1 >80lm/W -30-50℃ IP65 50000hour
(5 year limited warranty)
DG5705B-2 10Wx2
DG5705B-3 10Wx2





With Photocell

Item No. PF Light Source Luminous Effiency Operating Temperature IP Rating Lifespan
DG5705C-1 >0.95 10Wx1 >80lm/W -30-50℃ IP65 50000hour
(5 year limited warranty)
DG5705C-2 10Wx2
DG5705C-3 10Wx3





With Time-controller

Item No. PF Light Source Luminous Effiency Operating Temperature IP Rating Lifespan
DG5705D-1 >0.95 10Wx1 >80lm/W -30-50℃ IP65 50000hour
(5 year limited warranty)
DG5705D-2 10Wx2
DG5705D-3 10Wx3



Applications
Suitable for lighting and decorative lighting of hospitals, schools, shopping malls and office buildings.


Listing/ Warranty
ETL Listed to US and Canadian standards for wet locations
5 Year LED Limited Warranty
