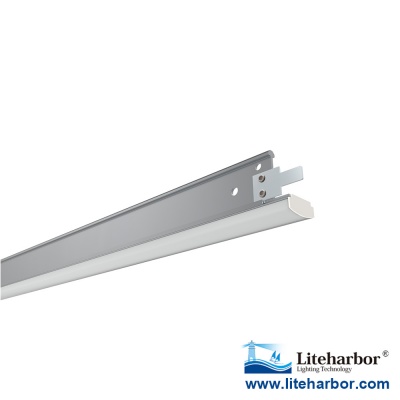

Liteharbor Indoor Cross Tee Linear Light
Liteharbor Indoor Cross Tee Linear Light2 Liteharbor Indoor Cross Tee Linear Light1 Liteharbor Indoor Cross Tee Linear Light0

Liteharbor Indoor Cross Tee Linear Light

ITEM No.: MB-60
Power : 10W/15W
Voltage : AC 120V~277V
CCT : 3000K/CCT Tunable
CRI : 80+/90+
Length : 2 ft/4 ft

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

Liteharbor Indoor Cross Tee Linear Light



Features

- This product is a long linear light fixture for tee suspended ceiling, a new way to seamlessly integrate recessed downlights
with architectural suspension systems. For the first time, led downlights can be placed at the intersection of the ceiling -
allowing for perfect alignment of lighting and architecture.
- This series has four different mounting, slot, hook, hang & snap. The slot mounting allow the line fitting to directly replace
existing ceiling gird. It is a simple as removing the grid and fitting in with line. For hook mounting, it mounts the linear light
directly onto the grid without the need to removing the existing gird. This is most suitable for the main grid. The wire hanger
allows the light to directly hang off the ceiling. Snaps mounting allow the lamp to recess into the ceiling.
- LED line unique mounting system allows the lamp to be place directly into the ceiling grid.we also offer mounting pieces
that can form different shapes. You can create your own shape on the ceiling. With this linear fixture on the ceiling, there is no requirement for addtional holes to made, just build your own shape and create a unique ceiling.
- Aluminum housing and high heat conductive alloy with built in protection for short circuit/overload/over voltage/over
temperature.Smart voltage remains constant to ensure flexible connection with the line.



Light Source
Using energy saving LED light source, a variety of CCT is optional, and other CCT can be provided according to
the requirements.



Applications
Apply to offices, shopping malls.


Dimming
Standard dimming control: 0~10V dimming.



Parameter List
Watt: 10W/15W
Voltage: AC 120V~277V
Frequency: 50/60 Hz
PF: >0.98
Dimming: Non-Dimming/0~10V Dimming/TRIAC Dimming
CRI: 80+/90+
CCT: 3000K/CCT tunable



Listing / Warranty

ETL listed to US and Canadian standards for damp location W/Feed through.
5 Year Limited Warranty.
