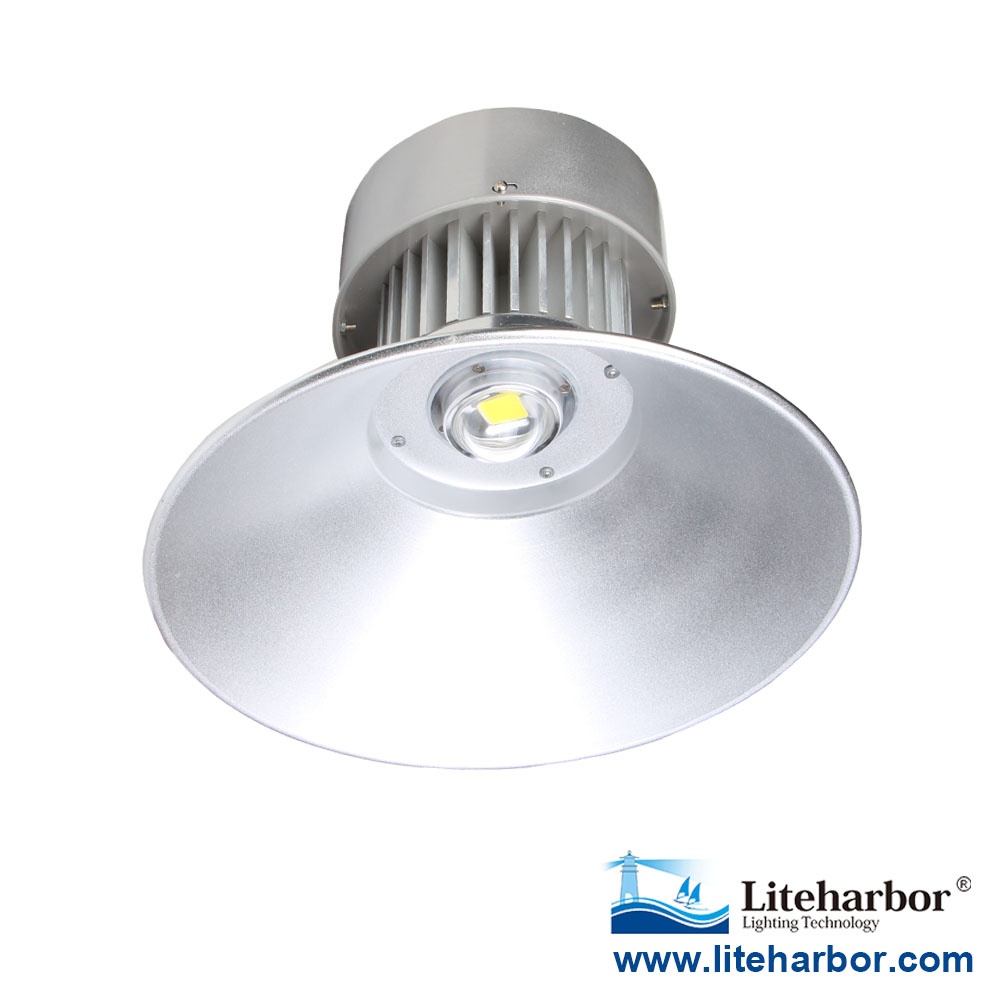

Module LED High Bay Light 30W

Module LED High Bay Light 30W

ITEM No.: HB-015-30
Series : LED High Bay Light
Wattage : 30W
Voltage : AC85~265V
Material : High strength aluminum alloy

+86-757-8180-8675 Info@liteharbor.com
Bookmark and Share

Module LED High Bay Light 30W



Features

1.The cooling module adopts high thermal conductivity aluminum die-casting and finishing, equipped with IP45 drip proof function, cooling column using 28 70mm high quality 3mm thick aluminum flake production, the whole lamp radiating module weight 2.2Kg, which belongs to limit temperature end cooling module in the 30W configuration (or temperature lower than 65~69 DEG C) --LED chip can not be higher than 78 in the long-term stability at work.
2.LED chip with high thermal conductivity of copper plated high tension bracket and 99% pure gold three dual dust-free anti-static packaging
3.LED chip under normal and stable operation, the integral sphere measured 100~110lm/w , the brightness of the performance in the end of the first chip
4.LED is driven by constant current and constant voltage AC85~265V wide national energy conservation certification scheme, and the pure high thermal conductivity IP67 three potting sealant, driving the electro-optical conversion efficiency and performance in the first end of the LED drive

Description

Material:  High strength aluminum alloy

Power:   30W

IP Rating :   IP45

Lumen:   3300LM

Temperature Rise:  <65°C

Lifespan of chip:   >50000 hours

Light distribution Mode:   LED+Reflector Optical Lens

Lifespan of Lamp:   >4~5 years
Beam Angle:   60°   90°  120°

LED Chip Quantity:   1PCS
Input Voltage:
AC100V~277V/50Hz

Power Factor:   >95%  /  >65%
Luminous color:   Cool white、Pure white、Warm white

Listing:  CE、ROSH
LED Driver:   Built-in waterproof wide voltage power supply

Weight:    2.2kg
Distance area:   2M~5M  /  20M²~36M²
Dimensions:  Small size:0.016m³  /  Lampshade Package size: 0.021m³



  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File









    Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

    Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.



    Liteharbor offers a complete product line of Recessed DownlightLED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.



        Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment.     Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made.     Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.     Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
