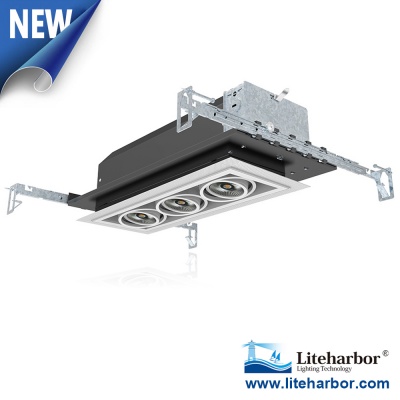

Trim or Trimless 3-Lamp New Construction Mini Multiple COB LED Downlight
Trim or Trimless 3-Lamp New Construction Mini Multiple COB LED Downlight0

Trim or Trimless 3-Lamp New Construction Mini Multiple COB LED Downlight

ITEM No.: G4013-E-COB
Series : LED Multiple Downlight
Light Source : COB
Input volt : 110V-277V
CCT : 2700-6500k
Material : Gauge Steel
Trim Options : Trimmed or Trimless
Trim Baseplate : Open or Closed Design

+86-757-8180-8675 Info@liteharbor.com
DOWNLOAD PDF:Spec Data Bookmark and Share

Trim or Trimless 3-Lamp New Construction Mini Multiple COB LED Downlight



Description
Mini LED Multiple Spots for remodeling and new construction
applications for residential and commercial environments. The
Multiple Spots are marketed as complete units including the
housing and trim. Available as one, two and three-light
configurations, each spot is individually adjustable and
provides a 30-degree visual cutoff for glare control.



Features
Individually adjustable luminaries
Complete unit includes housing & trim
All housings are Non-IC rated
30° vertical tilt, 360° horizontal rotation



Construction
Die-cast aluminum heat sink painted black. Trim and housing
are constructed of Gauge Steel.



Mounting
Supplied with 4 ways hanger bar, adjustable from 14½"-25" to
accommodate various joist construction and grid sizes. Hanger
bars include a captive mounting "screw-nail" for ease
installation. Can be accommodate a 1/2" to 1 1/4" ceiling
thickness.



Light Source
High output COB LED Chips



Dimming
Dimmable to 10% with most brand dimmers.



Input Voltage AC 90-305V 50/60Hz
Rated Power 10/Lamp
Luminous Efficiency 70 LM/W
Lamp COB
Color Temperature 2700-6500K
Material Gauge Steel
Power Factor > 0.98
CRI Ra80 / Ra90




  • FEEDBACK
  • DOWNLOAD PDF:Spec Data
    DOWNLOAD IES:IES File









    Liteharbor Lighting is a manufacturer with 13-year experiences in designing, developing and supplying wide selections of lighting products. Liteharbor locates in Foshan, Guangdong, China, which has great advantage in transportation and manufacturing. Liteharbor factory covers an area of 1,6000㎡ , and it is well-equipped.

    Excellent design and development team and strict QC department, as well as advanced equipment to ensure that we can complete orders on time. We work well together, and we are pride of ourselves on the ability to deliver products with the shortest lead times in the industry and the high quality of our products.



    Liteharbor offers a complete product line of Recessed DownlightLED Retrofit Downlight, Trimless Downlight, ceiling light, Mirror Light, Multiple Downlight, track light, Exit & Emergency light, LED Bulb, LED Tube, Cabinet Light and a lot kinds of Outdoor Lights. In addition to standard products, we also provide OEM and ODM services to meet individual requirements.



        Liteharbor dedicates to bring you the most advanced lighting technology and superior lighting environment.     Liteharbor takes quality as her first thing to pursue, all Liteharbor products are strictly conforming to international standards. Liteharbor products have obtained cULus, cETLus, DLC, CE, RoHS certificates and 36 patented products every year. At present, we have acquired the ISO9001 International Quality System Certificate. Liteharbor also offers the highest level of reliability, maintainability, and functionality of every product made.     Choosing Liteharbor will not only bring you high quality products but also sincere services, you deserve a better supplier and Liteharbor will be the right one for you.     Contacting Liteharbor always makes surprise!—www.liteharborfactory.com
